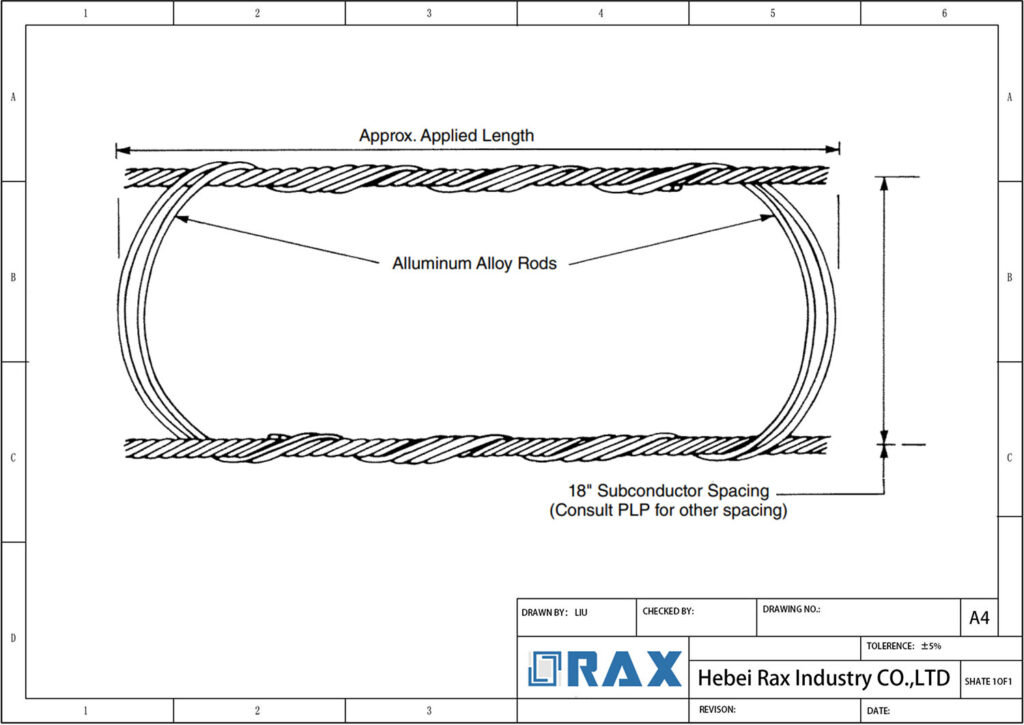

The Helical Rod Spacer maintains uniform spacing of horizontally bundled subconductors in overhead transmission systems, preventing wind-induced motions such as subconductor oscillation, aeolian vibration, and galloping. By controlling conductor movement, it prevents damage and entanglement from ice unloading or fault currents while maintaining consistent electrical characteristics across the line.
Constructed entirely of high-strength aluminum alloy wire formed into helical rods, the spacer resists galvanic corrosion and delivers structural integrity in harsh conditions. Its design is corona-free at voltages up to 500 kilovolts (kV) Alternating Current (AC) and 750 kV Direct Current (DC), with a continuous thermal rating of 125°C. The aluminum alloy construction eliminates the need for additional vibration dampers, providing integrated energy absorption during dynamic events.
Available in custom sizes for conductor diameters from 0.800 to 1.923 inches, the spacer complies with Institute of Electrical and Electronics Engineers (IEEE), National Electrical Manufacturers Association (NEMA), American National Standards Institute (ANSI), and American Society for Testing and Materials (ASTM) standards. Fault current testing validates its performance in Extra High Voltage (EHV) line designs.
Installation requires no special tools and can be performed uniformly using hot line tools for safe application in live line conditions, reducing downtime and facilitating maintenance in regions with high winds, ice accumulation, or demanding climatic conditions.
Helical Rod Spacer Wholesaler – Trusted for Over 21 Years
Founded in 2003, RaxPower is a recognized quality manufacturer of a wide variety of precision machined components and assemblies, including electromechanical assemblies. Our helical rod spacers exemplify this commitment to quality and precision manufacturing, providing the greatest possible resistance to conductor fatigue by eliminating the need for additional vibration dampers. This design is engineered with advanced damping elements to absorb maximum energy, ensuring reliable performance in various bundle configurations.
Key advantages include:
- Compliance with international standards such as IEC 61854 for demanding performance requirements.
- Subjected to rigorous laboratory testing in accordance with industry norms and customer specifications to validate durability and safety.
- Utilization of high-strength fasteners and materials in the conductor clamp for secure installation and long-term service.
- Availability in standard and high-temperature versions suited for continuous operation under extreme conditions.
Backed by over 21 years of experience and extensive production facilities, including 17,000 square meters of workshops, RaxPower ensures every product meets the highest standards through strict quality control and advanced manufacturing processes. For inquiries, please contact RaxPower directly.
| Parameter | Specification |
|---|---|
| Application | For horizontal twin conductor bundles in overhead transmission systems |
| Material | High-strength aluminum alloy wire |
| Thermal Rating | 125°C continuous |
| Voltage Rating | Corona-free up to 500 kV AC and 750 kV DC |
| Conductor Diameter Range | 0.800 to 1.923 inches |
| Standards | IEEE, NEMA, ANSI, ASTM |
| Installation | No special tools required; compatible with hot line tools |
| Fault Current Testing | Designed to meet EHV line design requirements; testing completed |
Frequently Asked Questions (FAQS)
What is the primary function of a Helical Rod Spacer?
The Helical Rod Spacer provides uniform spacing on horizontal conductor bundles to ensure consistent electrical characteristics. It minimizes wind-induced motions such as subconductor oscillation, galloping, aeolian vibration, and effects from ice unloading and fault currents, preventing conductor damage and entanglement while enhancing line stability.
What materials are used in the construction of the Helical Rod Spacer?
The Helical Rod Spacer is constructed entirely of high-strength aluminum alloy wire formed into helical rods, providing durability and resistance to galvanic corrosion.
How is the Helical Rod Spacer installed?
The Helical Rod Spacer can be applied easily and uniformly without tools and is designed for installation with hot line tools, ensuring safety and efficiency.
What are the thermal and voltage ratings for the Helical Rod Spacer?
The Helical Rod Spacer has a thermal rating of 125°C continuous and is designed to be coronafree at voltages up to 500 kV AC and 750 kV DC.
What standards does the Helical Rod Spacer comply with?
The Helical Rod Spacer is designed and manufactured in accordance with the latest applicable IEEE, NEMA, ANSI, and ASTM standards. RaxPower employs strict quality control, with products passing SGS tests and reviews by authoritative institutes to guarantee full compliance and reliability for grid applications.
Are custom sizes available for specific project requirements?
Yes, we offer custom sizes to meet your specific application needs, ensuring optimal performance and fit for various conductor bundles. This flexibility allows for tailored solutions that align with your project's unique demands.
What quality assurance processes do you have to ensure product reliability?
We employ strict quality control measures, including raw material selection, multi-stage testing, and a final review before packing to ensure 100% quality. Our automated manufacturing and advanced galvanization techniques further enhance consistency and durability, backed by over 21 years of expertise in producing reliable pole line hardware.
