Common Types of earth Anchors for Utility Poles

Equipment spec sheets list tensile strength ratings and stop there. The fine print tells a different story — install an anchor more than 5 degrees off the guy load alignment, and that rated holding capacity degrades fast. One parameter. Five degrees. The gap between a pole standing for decades and one tilting toward a highway after a single wet winter. Field crews still treat anchor selection as grab-and-go. It isn’t. An earth anchor selection guide grounded in actual soil conditions is what separates a 30-year installation from a warranty claim.

This article maps the major anchor families to the geology they belong in — bearing plate designs for soft saturated soils, rod-driven systems for dense clay, grouted anchors where the bore log reads like mixed geology. We cover the trade-offs that decide projects on installation day: why helical anchors torque out in hardpan, how expanding plates behave differently in clay versus crushed rock, and what field load testing actually tells you that datasheets never do. After 23 years of in-house load testing per IEC 120 standards at Rax Power, the failure patterns repeat across every continent we export to. The goal here is to make them predictable — and preventable.

Translating Geotechnical Data for Ground Anchors

Geotechnical reports are the single most accurate predictor of anchor holding capacity. Misinterpreting SPT N-values or ignoring seasonal water table fluctuations leads directly to foundation failure.

Utilizing SPT N-Values to Determine Soil Bearing Capacity

The Standard Penetration Test (SPT) N-value—the number of blows required to drive a sampler 12 inches into the soil—is the critical metric for determining anchor selection. It directly correlates to soil density and shear strength, which are the governing factors in anchor pull-out resistance. Low N-values (0–10) typically indicate loose sands or soft clays where traditional rod-driven anchors may achieve insufficient grip. In these conditions, anchors with large surface areas, such as multi-helix screw anchors or expansive cross-plates, are required to distribute the load over a greater soil volume.

Conversely, high N-values (30–50+) represent dense gravel or hardpan where installation force becomes the limiting factor. Attempting to drive a standard plate anchor into these substrates often results in equipment stalling or structural failure of the anchor rod during installation. For high-density strata, expanding anchors or heavy-duty square-shaft helicals are necessary to penetrate the ground and achieve the required torque capacity.

We frequently adjust our rod diameters and helix configurations based on these specific N-value profiles. In our experience supplying projects to Russia and Southeast Asia, using standard catalog specs for variable soil conditions is a recipe for failure. Instead, we apply hot-forging techniques to produce shafts with the specific tensile strength needed to withstand high installation torques in dense soils without compromising the anchor’s structural integrity.

Mitigating Seasonal Soil Variation Impacts on Holding Capacity

Soil is a dynamic medium that loses strength as moisture content increases. A geotechnical report taken during the dry season often yields SPT values and friction angles that are significantly higher than those present during the rainy season. In granular soils, rising groundwater tables reduce the effective stress, thereby decreasing the frictional resistance along the anchor’s failure surface. In cohesive soils, saturation can reduce shear strength by 50% or more, transforming a stable anchor into a liability.

To mitigate these seasonal risks, engineers must apply a conservative factor of safety to the calculated holding capacity, typically ranging from 1.5 to 2.0, depending on the soil variability. It is also essential to verify that the anchor’s depth extends below the seasonal water table fluctuation zone. For our export partners dealing with extreme seasonal shifts, we ensure our hot-dip galvanization—exceeding 85 microns per ISO 1461—protects the anchor from accelerated corrosion caused by wet soil environments, preserving the design strength over the system’s lifespan.

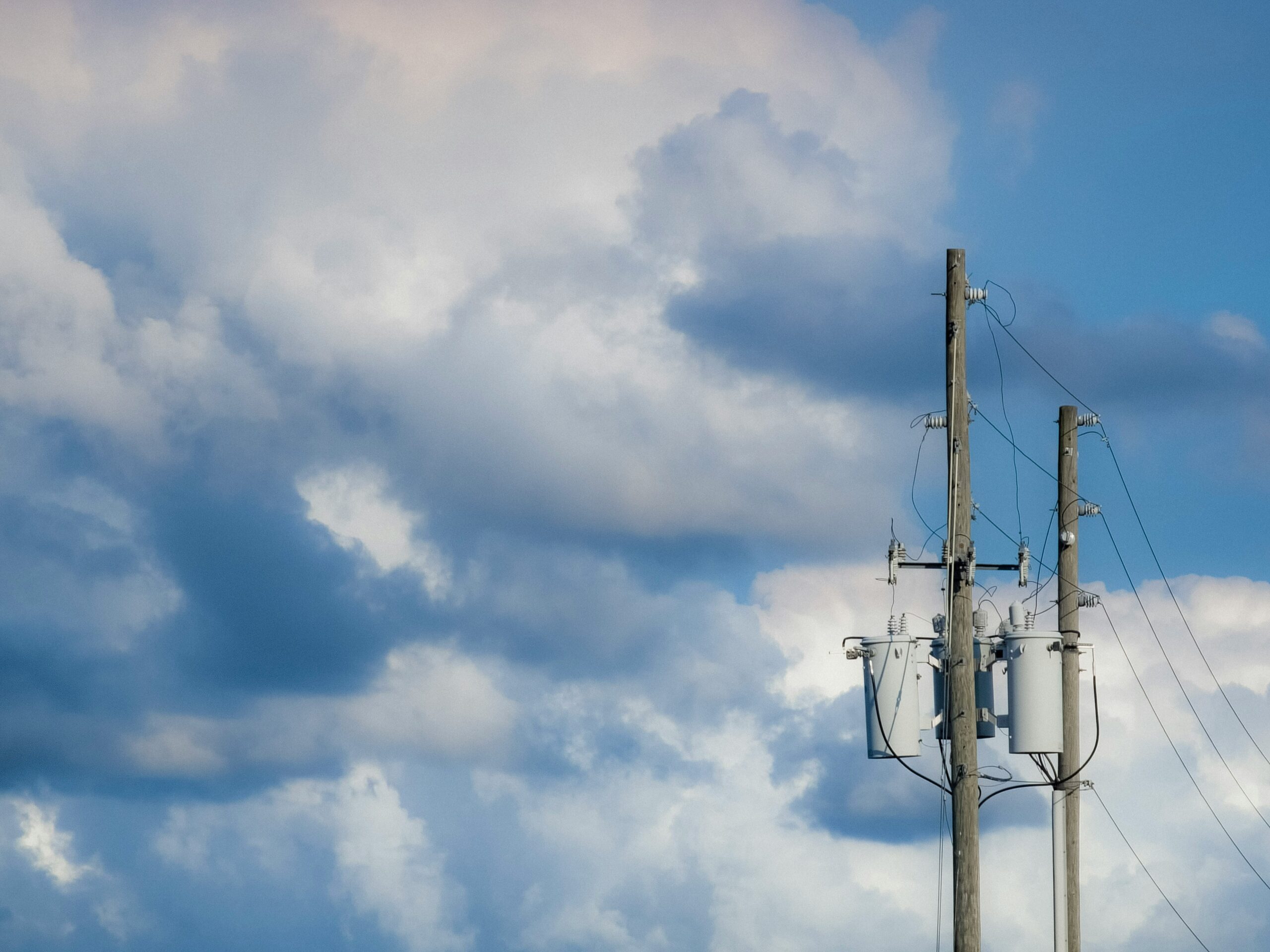

Utility Pole Load Requirements for Earth Anchors

Anchor failure rarely stems from inadequate vertical pull-out strength; it happens because engineers miscalculate the horizontal vector forces and ignore the dynamic tension limits of the guy wire system.

Calculating Horizontal Load Distribution and Guy Wire Tension

Utility poles act as vertical cantilevers, but earth anchors must manage the resultant forces generated by wind shear and unbalanced conductor loads. The critical engineering challenge is resolving these horizontal vectors into the axial tension applied to the guy wire. The lead-to-height ratio dictates this angle, shifting the structural burden between the pole’s compressive strength and the anchor’s tensile holding capacity. A shallow lead angle amplifies the compressive load on the utility pole, while a steeper angle drastically increases the vertical pull-out force on the anchor.

In our experience reviewing international grid installations, the root cause of premature anchor creep is almost always improper initial tensioning. Industry standards dictate an initial tension of 8% to 15% of the guy wire’s Rated Breaking Strength (RBS) to pre-load the system and absorb dynamic shock loads. Over-tensioning immediately exceeds the localized soil bearing capacity, leading to gradual anchor drag. Conversely, under-tensioning allows excessive pole deflection during peak wind events. We specifically calibrate our hot-forged guy clamps and anchor rods to maintain this precise 8-15% tension window, ensuring the hardware yields harmoniously with the wire under peak stress.

Balancing Combined Loading Profiles and Safety Factors

Real-world anchor loads are never purely vertical or horizontal. Engineers must calculate a combined loading profile that synthesizes the dead weight of the assembly, ice loading, wind drag, and line tension. This requires resolving the vector sum of these forces to determine the true ultimate load the anchor must resist. If an anchor specification sheet only provides basic vertical holding capacity without accounting for combined shear and axial loads, it creates a massive design blind spot for the project.

Bearing Plate Earth Anchors for Soft Soils

In loose soil mechanics, the anchor’s primary defense against pull-out is surface area, not depth. Without a broad plate, the anchor creates a localized shear plane that fails instantly under tension.

The Mechanics of Surface Resistance

Soft soils such as marsh, loose sand, or clay possess low shear strength. When a guy wire is tensioned, a standard narrow shaft anchor simply slices through the ground. Bearing plate anchors combat this by maximizing the surface area perpendicular to the load. This geometry distributes the tensile force over a larger volume of soil, effectively engaging more mass to resist the pull and preventing the classic ‘drag-out’ failure seen in unstable terrain.

Structural Integrity via Hot-Forging

Soft soils are dynamic; they settle and shift unpredictably. If the bearing plate is manufactured using traditional casting, microscopic voids can create weak points that fracture under shifting loads. We utilize hot-forging technology for our bearing plates. This process compresses the steel grain structure, eliminating internal voids and providing superior tensile strength and impact resistance compared to cast alternatives. The result is a plate that withstands the initial shock of installation and the long-term stress of soil movement without cracking.

Corrosion Defense in Saturated Ground

Soft soil environments typically retain high levels of moisture, creating a highly corrosive underground setting. Standard surface treatments often degrade rapidly in these conditions. Our manufacturing protocol adheres to ISO 1461 hot-dip galvanizing standards, ensuring a mean coating thickness that surpasses 85 microns. This dense zinc barrier is critical for long-term reliability, as it provides the necessary cathodic protection to prevent rust from compromising the structural integrity of the anchor plate over decades of service.

Technical Feature	Specification	Application Advantage	Quality Standard
Load Distribution Mechanism	Large Surface Bearing Plate	Optimized to maximize soil resistance in soft/loose terrains, preventing pole tilting and pull-out.	In-house load testing conducted per IEC 120 standards.
Structural Integrity	Hot-Forged Steel Construction	Provides superior tensile strength and impact resistance compared to traditional casting methods.	SGS verified materials and processes.
Corrosion Resistance	ISO 1461 Hot-Dip Galvanizing	Mean coating thickness exceeds 85 microns, ensuring durability in saturated underground environments.	10-person QC team monitors coating thickness at every stage.
Precision & Reliability	OEM/ODM Custom Molds	Tailored plate dimensions and rotation angles for specific soft soil engineering requirements.	100% Double-review process inspected twice before packaging.

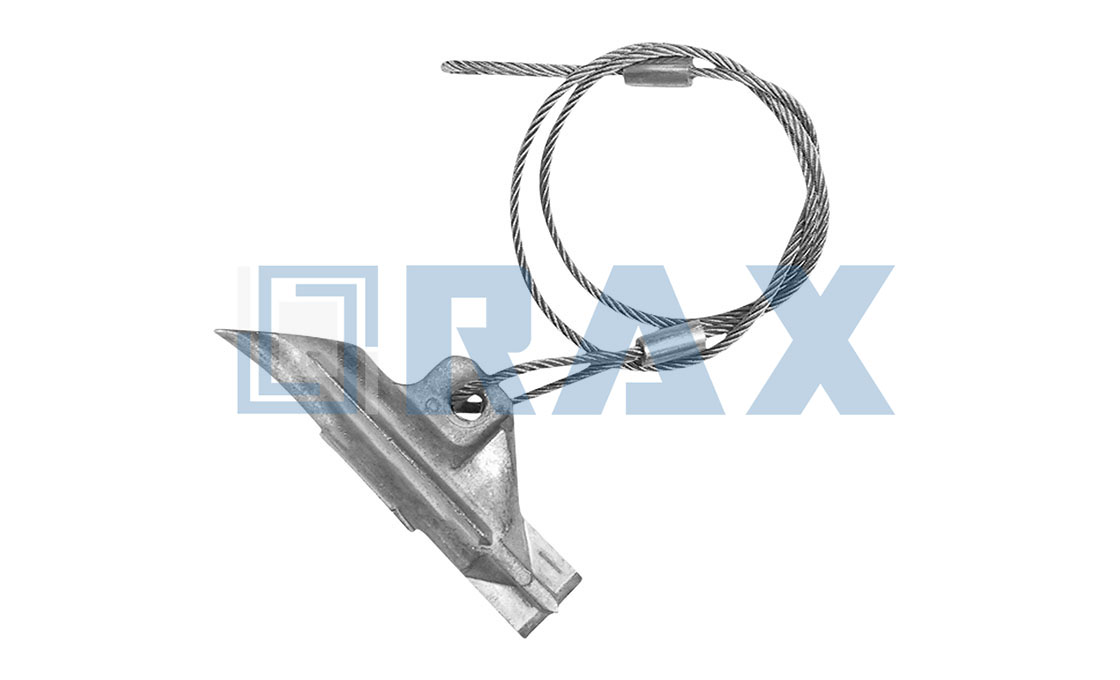

Rod-Driven Ground Anchors for Dense Clays

Rod-driven expanding anchors are the default choice for dense clay installations because they displace rather than remove soil, maintaining the very cohesion that gives clay its holding power. The failure mode isn’t usually the anchor body—it’s drive rod buckling and incomplete expansion in high-plasticity soils.

In dense clay environments (SPT N-values of 20 to 50), utility contractors face a fundamental selection problem: helical anchors fight the soil’s shear resistance during rotation, while grouted systems add unnecessary installation time. Rod-driven expanding anchors solve this by using a solid drive steel to punch a pilot hole, then pulling the anchor head back through the formation to lock the helix or expanding plate into undisturbed clay. The result is high bearing capacity without the torque requirements of screw anchors or the cure time of cement-based systems.

Why Dense Clay Demands a Different Anchor Geometry

Dense clay creates two conflicting engineering challenges. First, it offers excellent ultimate holding capacity due to high undrained shear strength—often exceeding 100 kPa in heavily overconsolidated deposits. Second, it resists penetration. A standard cross-plate anchor that performs adequately in sandy loam will refuse to reach target depth in clay with a plasticity index above 30, or it will arrive distorted and structurally compromised.

The rod-driven expanding anchor addresses this through a two-stage deployment. The drive rod carries the unexpanded anchor to depth as a compact assembly. Once at the target strata, upward tension pulls the cam or expanding mechanism open, forcing the bearing plate against the undisturbed clay face. Because the clay was never fully excavated, it retains its natural interparticle bond and delivers holding capacity within hours of installation—no settling period required.

Drive Rod Failure: The Hidden Cost of Inferior Steel

Achieving the necessary balance of impact resistance and ductility in dense clay requires hot-forged drive rods manufactured from medium carbon steel like AISI 1035. Heat-treated to a Brinell hardness of 200-250 HB, they withstand the repeated percussive loading that dense clay demands—conditions under which cast drive rods, while cheaper, fail catastrophically. Our internal testing across 23 years of field experience consistently shows forged rods maintaining dimensional integrity after 50+ installation cycles, whereas cast variants exhibit visible bending after as few as 5 cycles in clay with penetration resistance above 300 kPa.

Corrosion Protection: The Non-Negotiable for Clay Installations

Dense clay creates a low-oxygen, high-moisture environment that accelerates localized pitting corrosion on bare steel. The defense is hot-dip galvanizing applied after fabrication—not electroplating or mechanical zinc coating. Under ISO 1461, anchor assemblies in corrosive soil environments require a mean coating thickness exceeding 85 microns. This threshold is not arbitrary; it provides the sacrificial zinc mass needed for a projected 50-year service life in soil resistivity conditions common to saturated clays (typically 2,000 to 5,000 ohm-cm).

Field Load Verification Protocol for Clay-Installed Anchors

Dense clay exhibits time-dependent strength gain due to thixotropic recovery after installation disturbance. An anchor load-tested at 2 hours post-installation may show only 65% of the capacity it achieves at 72 hours. Tender specifications for utility infrastructure projects increasingly require proof testing at both intervals. The standard procedure involves applying 50% of design load initially, holding for 10 minutes, then ramping to 100% design load while monitoring creep displacement. Acceptance criteria typically limit displacement to less than 25mm over a 60-minute observation window at sustained proof load.

When Rod-Driven Anchors Are the Wrong Choice in Clay

Despite their advantages, rod-driven expanding anchors have documented limitations in specific dense clay conditions. In highly expansive clays with a swelling potential exceeding 6%, cyclic wetting and drying can progressively reduce the effective bond between the bearing plate and the soil matrix. Projects in these conditions—common in regions with pronounced dry and wet seasons—should consider helical anchors with larger diameter shafts, or grouted tieback systems for critical load applications. The rod-driven expanding anchor remains the optimal solution for stable, saturated dense clays where installation speed and immediate load capacity outweigh long-term cyclic loading concerns.

For B2B procurement teams evaluating rod-driven anchor suppliers, the differentiating factors are not the catalog drawings—those look identical across manufacturers. The real selection criteria are drive rod metallurgy documentation, ISO 1461 galvanizing certificates with thickness test results, and the supplier’s willingness to provide IEC 120 load test data from production lot sampling. We provide this documentation as standard practice because these are the exact verification steps that rejection-prone suppliers skip.

Spiral Flight Earth Anchors for Hard Ground

In dense or rocky soils, the critical engineering failure mode for earth anchors shifts from vertical pull-out to structural yielding during installation; the hardware must survive extreme torsional stress before it can ever engage the soil’s holding capacity.

When deploying guy wire supports in hard ground environments—such as compacted caliche, glacial till, or dense clay—contractors consistently face the issue of torque refusal. As the anchor meets dense resistance, the required installation torque spikes dramatically. This is where standard cast anchors frequently fail, snapping at the flight or permanently twisting the drive rod. We frequently address this exact pain point for our utility partners in extreme-climate markets like Russia, where dense, frozen soil profiles demand hardware that can absorb massive torsional impact without fracturing.

Optimizing Penetration in High-Density Strata

Spiral flight earth anchors are engineered specifically to mitigate these high-torque installation shocks. The continuous helical geometry allows for a smoother, more consistent rate of penetration, channeling the mechanical force downward rather than allowing it to concentrate and fracture the anchor head. Because our manufacturing process utilizes high-temperature forging rather than traditional casting, the molecular grain structure of the steel flows continuously along the shaft. This structural uniformity eliminates the micro-porosities that lead to sudden shear failures when a powered installer hits a subterranean rock shelf or hardpan layer.

While expanding anchors are often cited as an alternative for hard rock conditions, they require precise pre-drilling and extensive manual excavation. In remote utility deployments where minimizing equipment footprint and labor costs is critical, spiral flight anchors bypass this bottleneck by displacing dense soil laterally as they advance. However, field operators must remain vigilant, as the structural advantage of a forged shaft only holds if the installation torque does not exceed the drive head’s engineered yield limit.

Technical Parameter	Specification	Engineering Advantage
Core Manufacturing	Hot-Forged Steel Technology	Superior structural integrity prevents drive-rod bending during high-torque installation in dense or hard soil.
Corrosion Defense	>85 Microns Hot-Dip Galvanizing (ISO 1461)	Thick, uniform coating provides long-term protection against underground corrosion and soil acidity.
Flight Configuration	Helical Round or Square Shaft	Optimized pitch design maximizes torque transfer and penetration efficiency in compacted earth.
Load Verification	IEC 120 In-House Load Testing	Certified pull-out capacity ensures reliable holding power for high-tension guy wire applications.
Quality Control	100% Double-Review Inspection	Zero-defect assurance guarantees dimensional accuracy for immediate field deployment.

Grouted Earth Anchors for Mixed Geology

Mixed geologies force the integration of grouted and mechanical earth anchors, creating complex load-transfer dynamics. Maintaining a unified safety factor demands strict metallurgical consistency and standardized interface hardware.

Resolving Mixed Anchor System Integration

Utility projects rarely enjoy uniform soil profiles. When a transmission line crosses from dense clay into rocky terrain, site engineers must transition from driven expanding anchors to grouted earth anchors. The primary pain point in these hybrid arrangements is not just the installation method, but the hardware interface. Disparate thread patterns, undefined load axes, and unverified safety factors frequently compromise the structural integrity of the pole line.

To eliminate integration complexity, engineers must standardize the anchor-to-guy wire interface, regardless of the below-ground mechanism. We address this by applying strict hot-forging techniques to our expanding and cross-plate anchor heads. This ensures the connecting tie rods maintain consistent yield strengths across the entire project. Field crews can swap anchor types based on geotechnical data without redesigning the above-ground guy wire assembly or worrying about mismatched hardware.

Load Verification in Hybrid Arrangements

This reality demands aggressive in-house verification. We subject all anchor assemblies—whether destined for soft soil or solid rock—to strict load and gauge testing per IEC 120 standards. Our dedicated 10-person QC team executes a 100% double-review process before packaging, ensuring that every grouted anchor rod and mechanical expanding anchor meets identical failure thresholds.

Earth Anchor Installation Guidelines and Differences

Earth anchor holding capacity failures are rarely manufacturing defects; they are almost exclusively the result of field parameter oversights. Precise installation angles and depth verification dictate whether an anchor holds or pulls out.

Addressing Critical Installation Angles and Depth Requirements

An earth anchor must be installed so that the anchor rod aligns perfectly with the resultant guy wire load. If the anchor is driven at an angle offset from the guy wire’s direct line of pull, the tension creates a severe lateral bending moment on the rod. This misalignment induces cyclic fatigue and gradually wallows out the soil around the shaft, ultimately leading to premature anchor pull-out or rod yielding. Field technicians must ensure the drive angle points directly at the intended pole attachment point.

Depth is equally critical. The anchor’s bearing surface—whether a helical plate, cross-plate, or expanding bail—must be seated completely below the active frost penetration line and topsoil layer into undisturbed, load-bearing soil. Shallow installations in loose topsoil will fail immediately under high wind loads, as the soil simply does not possess the required shear strength to resist the uplift.

In our engineering facility, we utilize hot-forging technology to ensure the tensile integrity of our expanding anchors and helical shafts, and our lab verifies load capacities per IEC 120 standards. However, our internal field data consistently shows that even an 85-micron hot-dip galvanized, high-tensile anchor will underperform if the installation vector is misaligned by just a few degrees. The hardware is only as strong as the geometry of its installation.

Overcoming Parameter Oversights in Challenging Soil Conditions

The most expensive oversight in utility construction is assuming uniform soil composition across an entire right-of-way. In challenging geologies—such as mixed clay, saturated silts, or dense gravel—contractors frequently misjudge the torque-to-capacity ratio. While helical anchors offer rapid installation, blindly driving them without reading the torque feedback means installing blind. Torque correlation factors vary wildly between stiff clays and loose sands, meaning standard capacity charts are useless without site-specific calibration.

Overcoming these site variables requires a total cost of ownership (TCO) approach to anchor selection. Helical anchors demand high equipment costs (hydraulic drive motors) but minimize labor and eliminate concrete cure times. Conversely, cross-plate and expanding anchors require manual augering and heavy backfilling labor but provide superior bearing area in highly expansive or saturated soils where helical flights might simply churn the ground.

Load Verification and Maintenance of Ground Anchors

Datasheet load ratings are theoretical baselines; true structural integrity depends entirely on rigorous field torque-to-load verification and proactive galvanic corrosion evaluation.

Implementing Torque Capacity Correlation and Field Load Testing

Engineers frequently face a dangerous gap between laboratory-rated holding capacities and actual performance in unpredictable geology. Torque capacity correlation provides a critical mathematical bridge during installation. By monitoring the final installation torque of expanding or helical anchors using a calibrated torque wrench or digger derrick, crews can apply a site-specific torque-to-hold ratio to verify that the anchor has achieved the required soil bearing capacity before the guy wire is tensioned.

Establishing a reliable baseline for these field calculations requires uncompromising manufacturing controls. We execute strict in-house load testing per IEC 120 standards to determine the absolute yield and breaking limits of our hardware before it ever leaves the facility, ensuring that any field discrepancies point to geotechnical anomalies rather than material defects.

Evaluating Corrosion Protection and Galvanized Anchor Lifespan

Subterranean corrosion silently degrades infrastructure integrity long before visible surface signs appear. While hot-dip galvanizing can theoretically provide decades of protection, the actual service life of an underground anchor is dictated by localized soil pH, chloride content, and stray currents. A galvanized coating that is too thin or mechanically damaged during installation in rocky terrain will suffer accelerated capacity loss, leading to premature guy wire relaxation and eventual pole failure.

Mitigating this hidden degradation requires high-grade material engineering. We refuse to compromise on metallurgical integrity, utilizing superior hot-forging rather than traditional casting to eliminate internal porosity. This dense, high-strength foundation is paired with leading hot-dip galvanizing technology compliant with ISO 1461, guaranteeing a mean coating thickness strictly exceeding 85 microns to withstand aggressive soil chemistry across global utility markets.

Conclusion

[ {“type”: “paragraph”, “content”: “Matching the right anchor to your soil profile beats picking the cheapest option every time. Bearing plates handle soft saturated ground. Rod-driven anchors grip dense clay. Spiral flights bite into hard soil. Grouted systems bridge mixed geology. Get that match wrong, and you’ll watch poles tilt within the first freeze-thaw cycle.”}, {“type”: “paragraph”, “content”: “Corrosion kills anchors faster than overload. Our ISO 1461 galvanizing exceeds 85 microns — the difference between a 15-year and 50-year service life in aggressive soils. We run IEC 120 load tests in-house on every batch. Send us your geotechnical reports and guy wire tension specs. Our engineers will validate your anchor selection before you commit to an order — no obligation, just hard numbers.”} ]
