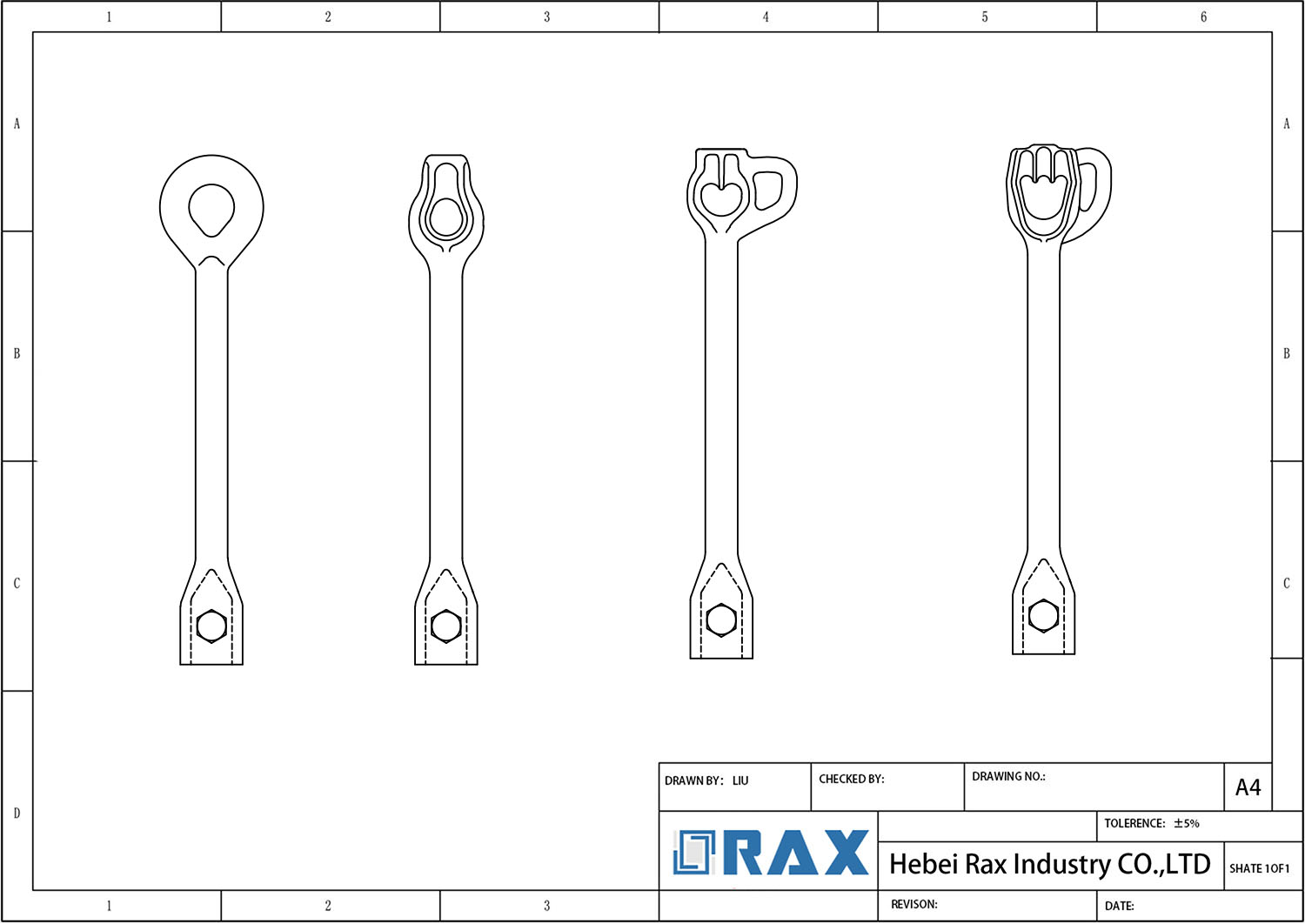

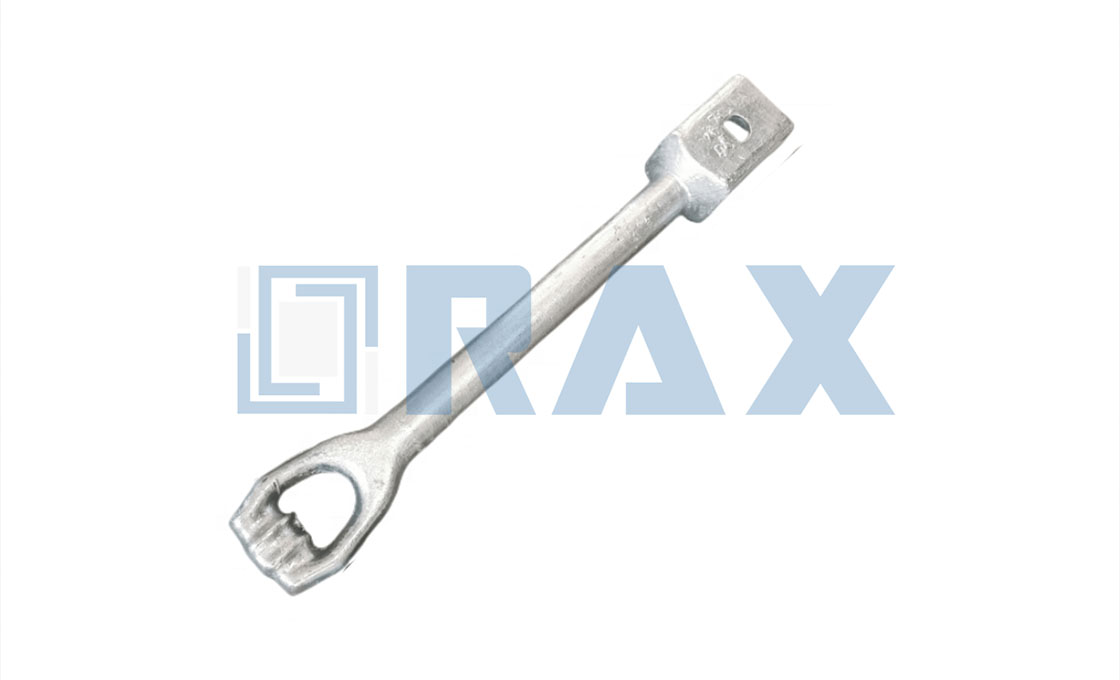

The Guy Adapter is a one-piece double or triple eye adapter for use with 1-1/2 inch Round Cornered Square (RCS) shaft helical anchors and 1-1/4 inch round power shaft screw anchors. This patent pending component terminates guy wire systems, enabling direct connections without additional adapters during tensioning. Constructed from hot dipped galvanized steel per American Society for Testing and Materials (ASTM) A153 or A123 standards, it provides corrosion resistance across environmental conditions.
The adapter features forged fittings on both ends and a forged integral pulling eye for direct attachment of tensioning devices. A high-strength bolt and nut enable straightforward assembly within anchor systems. The adapter body delivers 70,000 pounds ultimate tensile strength, while the integral lifting eye is rated for 12,000 pounds ultimate tension strength.
Measuring 18 inches long (approximately 18 inches by 3.5 inches by 3 inches) and weighing 9.565 pounds, the adapter accommodates standard shaft sizes and integrates into helical anchor assemblies for utility, telecommunications, and tower foundations. Installation requires alignment within 5 degrees of the guy load direction to maintain rated strength. The pulling eye is designated for tensioning devices only; guy wires should not attach directly to this eye.
Trust RaxPower as Your Guy Adapter Wholesaler with Over 21 Years Expertise
RaxPower is a leading manufacturer of helical guy anchors for the utility, cell tower, and wind turbine industries. We produce the highest quality helical guy anchors and Guy Adapters to provide support for guyed towers without the need for concrete. Our products are Designed and Engineered to Perform.
With load requirements and soil information, our Engineering Department and trained support staff are available to help with your project from conception to completion, providing analysis and calculations. With over 21 years of experience, helical ground anchors have revolutionized the industry by offering a quick, cost-competitive, and verifiable solution.
Benefits of our helical ground anchors include:
- Speed of installation
- All-weather capability
- Easy installation in limited access areas
- Immediate load application
Applications cover a wide range of uses:
- Telecom towers
- Utility poles
- Transmission lines
- Solar panels
- Wind turbines
The Guy Adapters are manufactured using hot forging technology for greater strength and are hot-dip galvanized per ISO 1461 for corrosion protection. Call the steel utility foundation experts at RaxPower today.
| Parameter | Value |
|---|---|
| Type | Double or Triple Eye |
| Material | Steel |
| Coating | Hot dipped galvanized per ASTM A153 or A123 |
| Shaft Compatibility | 1-1/2 inch RCS shaft helical anchors and 1-1/4 inch round power shaft screw anchors |
| Ultimate Tensile Strength (Adapter Body) | 70,000 pounds |
| Ultimate Tensile Strength (Lifting Eye) | 12,000 pounds |
| Length | 18 inches |
| Width | 3.5 inches |
| Height | 3 inches |
| Weight | 9.565 pounds |
Frequently Asked Questions
What types of guy adapters are available?
RaxPower offers one-piece double eye and triple eye guy adapters for 1-1/2
What material and corrosion protection does the guy adapter have?
The guy adapter is made from steel and is hot dipped galvanized per ASTM A153 for corrosion protection, with galvanized surfaces smooth and bright, and a mean coating thickness exceeding 85 microns for articles over 6mm thick per ISO 1461.
What are the strength ratings and specifications?
The guy adapter has an ultimate tensile strength of 70,000 lbs, with the integral lifting eye rated at 12,000 lbs ultimate tension strength. The standard length is 18 inches.
What manufacturing processes ensure quality and precision?
RaxPower utilizes hot forging technology for greater strength and accurate sizing compared to casting. The guy adapters include forged fittings on both ends and a forged integral pulling eye. Automatic machines maintain sizing accuracy and product uniformity, with strict quality control including raw material selection and multi-stage testing.
Are the products tested and certified to international standards?
Yes, guy adapters have undergone load tests using different machines and have passed SGS tests and tests by authoritative research institutes. RaxPower performs gauge tests per IEC 120 standards to ensure compliance, with products reviewed twice before packing for 100% quality.
Can the guy adapter be used to apply installation torque?
No, the guy adapter is not used to help install the anchor and torque should not be applied to it.
Can you handle large-volume orders and ensure timely delivery?
RaxPower has 17,000 square meters of production workshops and 5,000 square meters of warehouses, supported by automation for consistent quality and easy installation, ensuring on-time delivery even for bulk orders.
