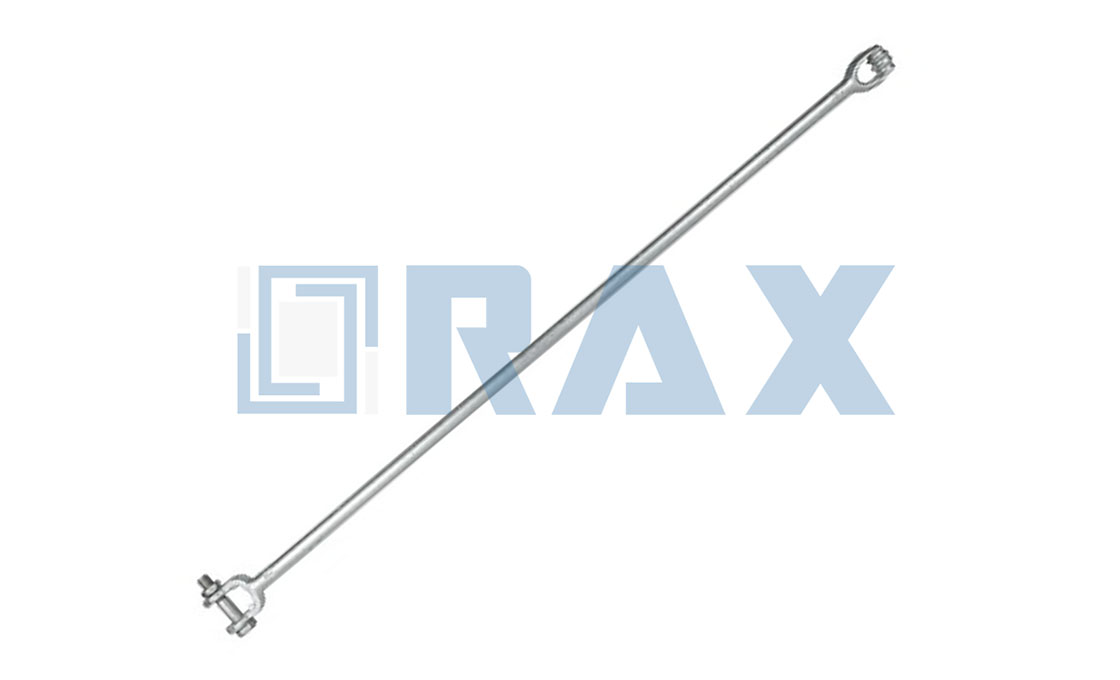

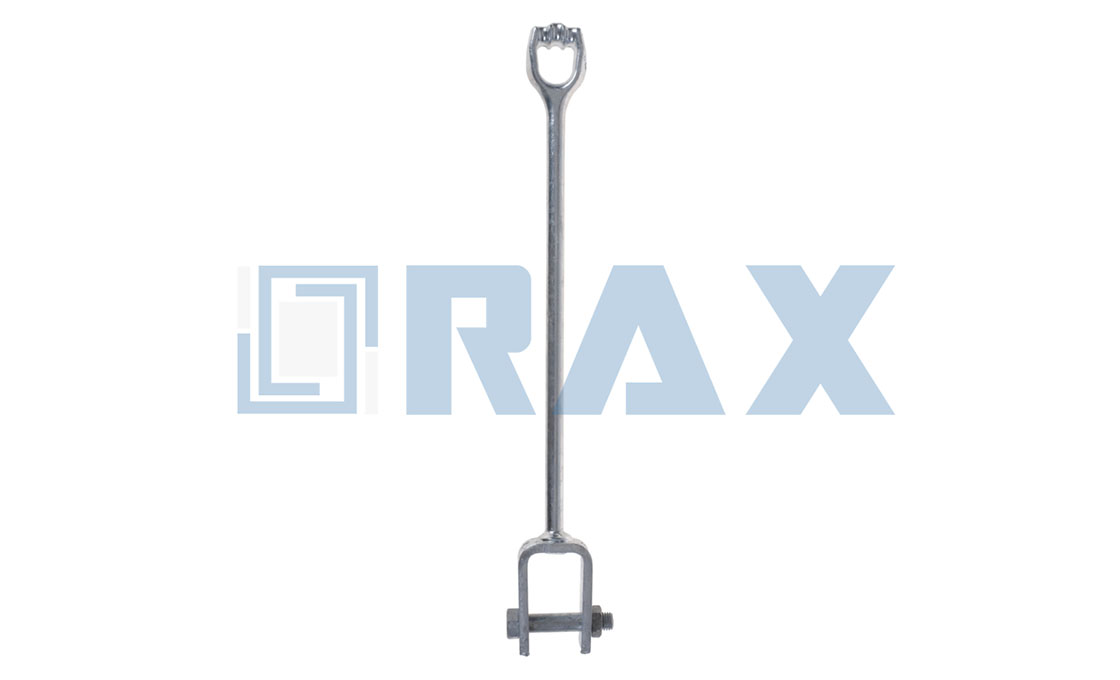

An anchor rod extension is a hot-dip galvanized cylindrical metal device that creates above-grade connections between installed anchors and guy wires. It extends the anchor rod when the eye of the leading rod is at or below grade, facilitating secure linkage in anchorage systems. The extension consists of a cylindrical middle portion, a drop-forged eye (such as Tripleye or Thimbleye designs), and a clevis end equipped with a high-strength nut and bolt for assembly.
The extension uniformly distributes pulling stresses over each attached guy wire strand, preventing the wires from bending, kinking, or spreading. It enables deeper installation by reaching firmer soil conditions, ensuring reliable performance in various ground types. Applications include utility poles, telephone poles, power line installations, building construction, highway construction, towers, antennas, wind turbines, and seismic retrofitting.
Hot-dip galvanizing provides enhanced durability and corrosion resistance in accordance with American Society for Testing and Materials (ASTM) A153 standards. The drop-forged eyes are stronger than the rod itself, and the clevis end allows for quick installation. Rod diameter and length are stamped on the product for identification.
Common rod diameters include 3/4 inch, 1 inch, and 1-1/4 inch, with lengths available in 18 inches, 24 inches, 36 inches, 72 inches, and 7 feet. Tensile strength ratings vary by model, ranging from 16,000 pounds to 36,000 pounds, with ultimate strength ratings applying to properly installed anchors.
Anchor Rod Extension Manufacturer
RaxPower is one of China’s most reliable anchor rod manufacturers, established in 2003 in Hebei Province with over 21 years of manufacturing expertise.
Anchor rod extensions are essential for stabilizing structures like utility poles, telecommunication networks, and street light poles, where high tensile strength and corrosion resistance are critical.
Our anchor rod extensions are designed with robust tensile capacities, such as 36,000 lb for 1-inch diameter rods, and are hot-dip galvanized to ASTM standards, ensuring durability in various environments. Customizable in diameters and lengths, these rods are manufactured using advanced hot forging technology, which enhances strength and ensures accurate sizing for reliable performance.
With a commitment to quality, we implement:
- Strict raw material selection
- Multi-stage testing
- 100% quality reviews, including load tests and gauge tests per international standards
Our automated production and leading galvanization processes, with mean coating thickness exceeding 85 microns, guarantee uniform, high-quality products tailored to your project needs.
All you have to do is contact us, and we’ll take care of the rest.

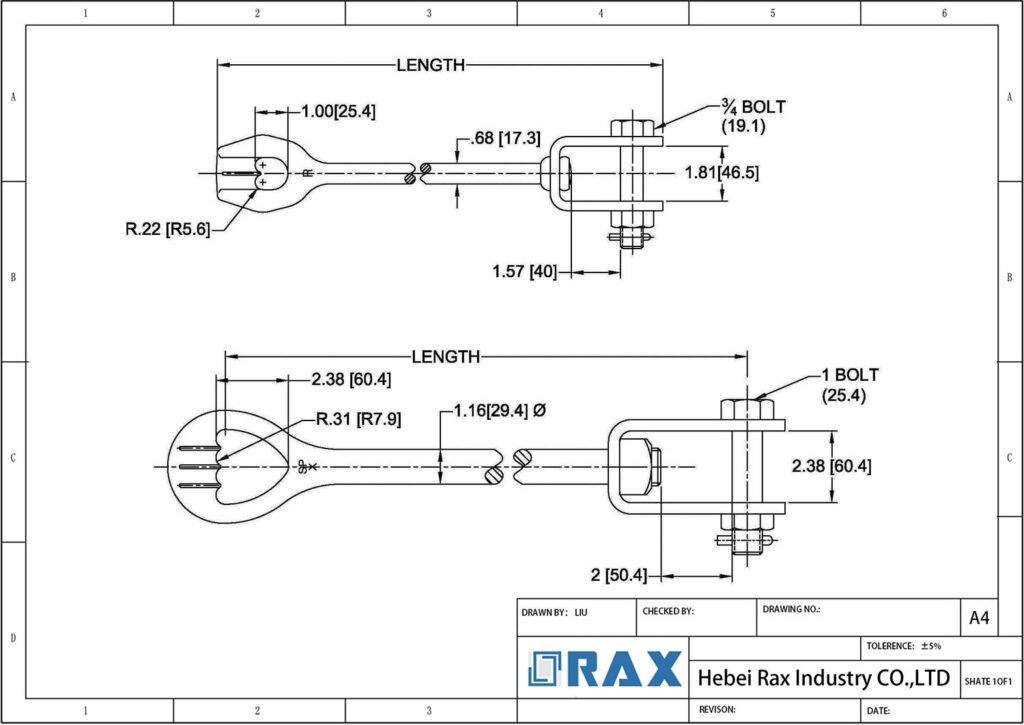

| Rod Diameter (in) | Number of Guy Attachments | Rod Length (ft) | Weight (lb) | Tensile Strength (lb) |
|---|---|---|---|---|
| 3/4 | 3 | 2 | 6.1 | 23,000 |
| 3/4 | 2 | 2 | 8.0 | 23,000 |
| 3/4 | 3 | 7 | 9.3 | 23,000 |
| 1 | 3 | 1.5 | 7.5 | 36,000 |
| 1 | 3 | 7 | 15.5 | 36,000 |
| 1-1/4 | 3 | 3 | 18.1 | 36,000 |
Frequently Asked Questions
What is an anchor rod extension?
An anchor rod extension is a hot-dip galvanized cylindrical device that connects an installed anchor to guy wire strands when the anchor eye sits at or below grade. It features a drop-forged eye design that uniformly distributes pulling stresses across attached guy wires, preventing bending, kinking, or spreading.
What are the primary applications of anchor rod extensions?
These extensions are used in building construction, highway projects, bridges, towers, antennas, wind turbines, seismic retrofitting, and utility pole installations. They are particularly suited for telecommunications infrastructure like ADSS/OPGW fiber optic lines and renewable energy installations.
What sizes and dimensions are available?
Common rod diameters include 3/4 inch, 1 inch, and 1-1/4 inches, with lengths ranging from 1.5 feet to 7 feet. Popular configurations include 1-1/4 x 24, 1-1/4 x 36, and 1-1/4 x 72. Each extension is stamped with its rod diameter and length for easy identification.
What is the tensile strength of anchor rod extensions?
Tensile strength varies by model, with ratings of 16,000 lbs, 23,000 lbs, 36,000 lbs, and up to 40,000 lbs depending on rod diameter and design specifications.
How are anchor rod extensions installed?
The clevis end connects to the anchor eye when greater depths are needed to reach firmer soil, while the drop-forged eye accommodates guy wire strands. Installation must maintain within 5° of alignment with the guy load to preserve rated strength.
What quality standards and testing do your extensions meet?
Our extensions are hot-dip galvanized per ASTM A153 or A123 standards, with coating thickness tested per ISO 1461. They undergo rigorous load testing and gauge checks to ensure consistent performance. The drop-forged manufacturing process creates precise dimensions and enhances structural integrity for critical infrastructure applications.
Can you accommodate large-volume orders for major construction projects?
Yes, we offer flexible packaging options including carton and pallet quantities to support bulk supply needs for EPC contractors and large-scale projects. Our automated manufacturing enables competitive pricing while maintaining strict quality control for OEMs and distributors.
