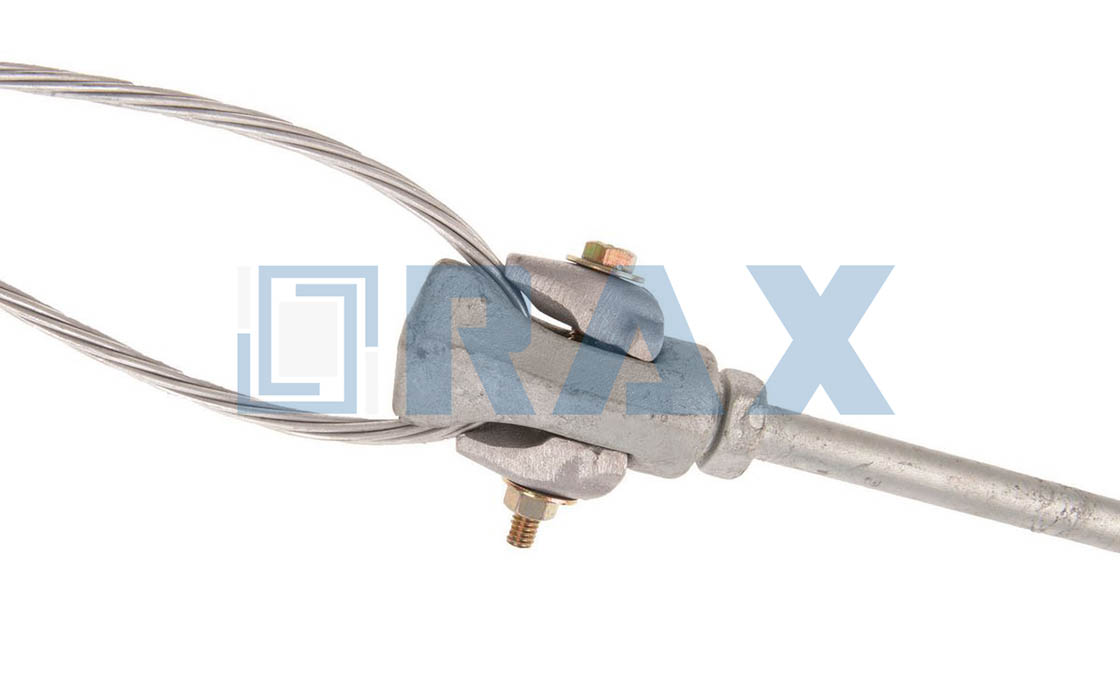

Anchor rod bonding clamps establish secure mechanical and electrical connections between guy strands and anchor rods in structural and utility applications. The clamp fastens onto the cable and bonds it to the anchor rod, maintaining system integrity and stability.

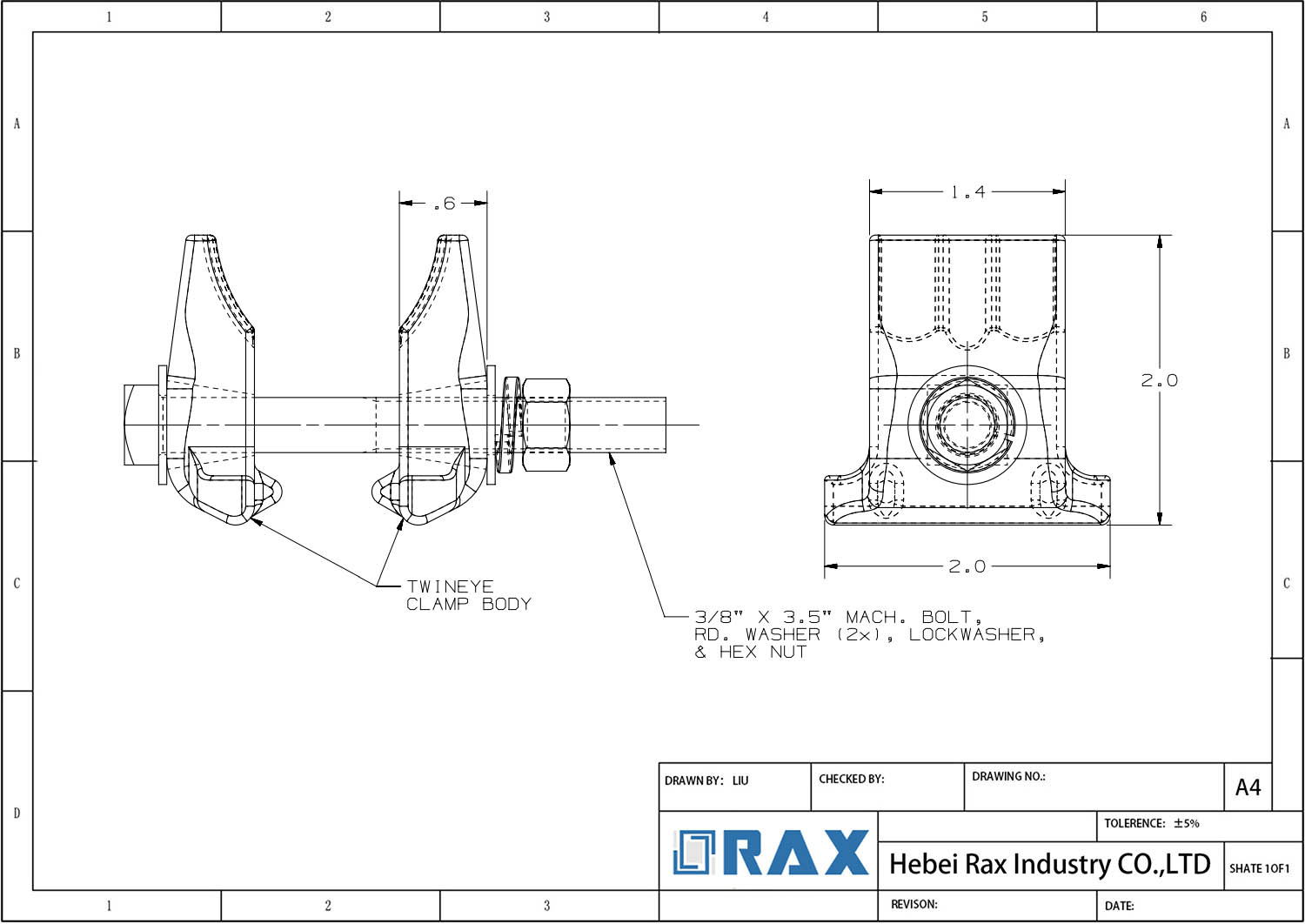

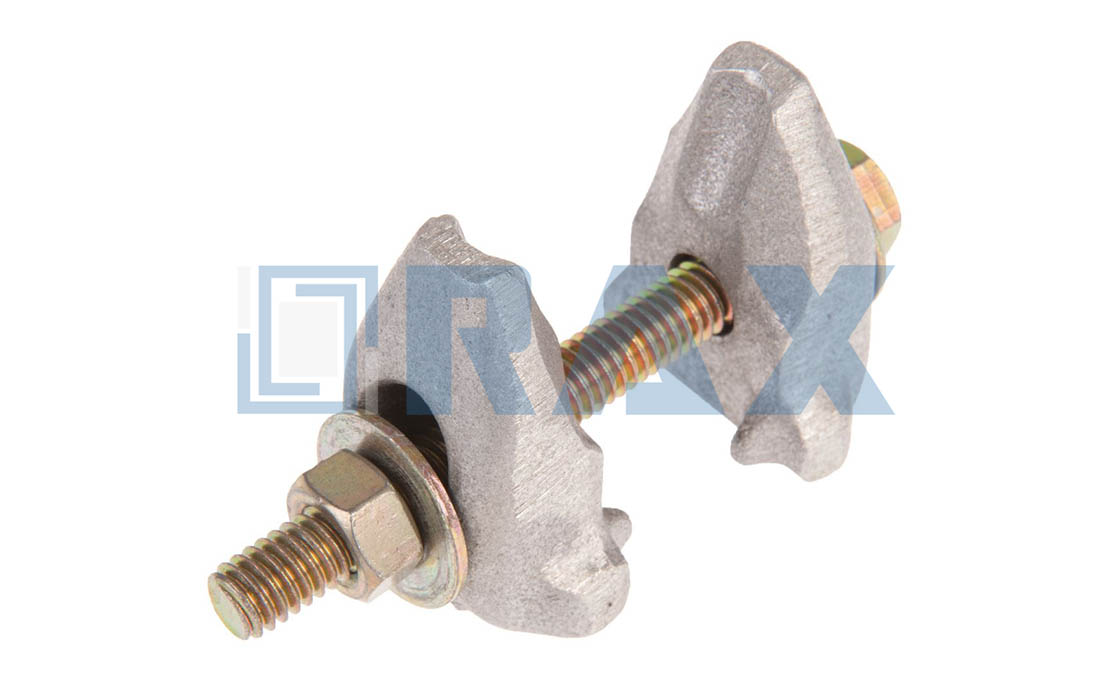

These clamps are manufactured from high strength aluminum alloy, with some variants using galvanized steel or incorporating stainless steel hardware such as hex bolts, nuts, and lock washers. Material selection ensures resistance to moisture, corrosion, and oxidation in exposed outdoor environments. The cast aluminum or steel body features a clamping mechanism that grips the guy strand firmly without causing distortion. Common configurations include thimbleye, twineye, and tripleye types, engineered to fit specific anchor systems, with Rural Utilities Service (RUS) listed models available for compliance.
Available in various sizes and configurations, the clamps accommodate single, double, or triple strand options. Rod diameters range from 1/2 inch to 1-1/4 inches, with strand sizes from 3/16 inch to 1/2 inch. They are compatible with power installed screw anchors or forged eye anchor rods.
Applications include tower and mast construction, utility pole grounding, and antenna or communication tower guy wire anchoring. The clamps reinforce stability, enhance load bearing capacity, and maintain electrical continuity essential for grounding systems, ensuring dependable pressure contact and mechanical integrity over time.
Anchor Rod Bonding Clamp Manufacturer
RaxPower’s anchor rod bonding clamps maintain a dependable mechanical and electrical pressure contact between guy strand and anchor rod, essential for reliable grounding systems.
As China’s leading manufacturer of pole line hardware, RaxPower supports utility requirements with a comprehensive range of products for power line construction, developed through 21 years of expertise since its establishment in 2003. Located in Hebei Province, the company operates from 17,000 square meters of production workshops, utilizing advanced manufacturing processes like hot forging to produce components with superior strength and precise sizing, directly enhancing the clamp’s durability and performance.
With a dedicated team of over 170 employees, including 30 professional technicians and 10 engineers, we implement strict quality control measures—from raw material selection to multi-stage testing and load tests—ensuring that every clamp adheres to industry standards such as IEC 120 and has passed SGS certifications.
All products are designed and manufactured in accordance with applicable electric utility and communications industry standards, embodying our philosophy of “quality is life, reputation is base.” Our team is ready to help!
| Series | Eye Type | Rod Diameter (inches) | Strand Size Range (inches) | Weight/100 (lbs) | Material | Hardware |
|---|---|---|---|---|---|---|
| 1-5/8 | Thimble | 5/8″ | 3/16″ to 3/8″ | 17.3 | High Strength Aluminum Alloy | Stainless Steel or Plated Steel Hex Bolts, Nuts, and Lock Washers |
| 1-5/8 | Thimble | 3/4″ | 3/8″ to 1/2″ | 17.3 | High Strength Aluminum Alloy | Stainless Steel or Plated Steel Hex Bolts, Nuts, and Lock Washers |
| 1-5/8 | Thimble | 1″ | 3/8″ to 1/2″ | 17.3 | High Strength Aluminum Alloy | Stainless Steel or Plated Steel Hex Bolts, Nuts, and Lock Washers |
| 2-5/8 | Twin | 5/8″ | 1/4″ to 1/2″ | 13.7 | High Strength Aluminum Alloy | Stainless Steel or Plated Steel Hex Bolts, Nuts, and Lock Washers |
| 2-5/8 | Twin | 3/4″ | 1/4″ to 1/2″ | 13.7 | High Strength Aluminum Alloy | Stainless Steel or Plated Steel Hex Bolts, Nuts, and Lock Washers |
| 2-5/8 | Twin | 1″ | 3/8″ to 1/2″ | 13.7 | High Strength Aluminum Alloy | Stainless Steel or Plated Steel Hex Bolts, Nuts, and Lock Washers |
| 3-3/4 | Triple | 3/4″ to 1-1/4″ | 1/4″ to 1/2″ | 25 | High Strength Aluminum Alloy | Stainless Steel or Plated Steel Hex Bolts, Nuts, and Lock Washers |
Frequently Asked Questions
Anchor rod bonding clamps establish a secure mechanical and electrical connection between guy strands and anchor points, ensuring stability and reinforcing load capacity in structures like towers, masts, and utility poles. They are ideal for grounding applications in utility and communication infrastructure.
RaxPower's clamps are made from high-strength aluminum alloy or galvanized steel, materials chosen for their ability to withstand outdoor conditions and resist corrosion, oxidation, and wear, ensuring reliable long-term performance.
We offer various configurations including single, double, and triple strand options with different eye types like thimbleye, twineye, and tripleye, compatible with different rod diameters and strand sizes to suit diverse applications from tower construction to renewable energy projects.
Installation is straightforward: place the clamp around the guy strand and apply pressure using the integrated clamping mechanism to secure a firm grip on the strand and anchor rod, ensuring a dependable connection without specialized tools.
Key specifications include rod type and diameter, strand size, eye type, and material. Common rod sizes range from 1/2 inch to 1-1/4 inches, and strand sizes from 3/16 to 1/2 inch, with options for forged eye or power installed screw anchors. Refer to RaxPower's specifications for recommendations based on your specific cable diameter and rod type.
What is the primary function of an anchor rod bonding clamp?
What materials are anchor rod bonding clamps constructed from?
What types of anchor rod bonding clamps are available?
How do you install an anchor rod bonding clamp?
What key specifications should I consider when selecting an anchor rod bonding clamp?
