Advantage claims for composite insulators usually arrive as bare percentages. Ten percent lighter, ninety percent better, thirty years of service — useful numbers, and all worthless until you know who measured them. This audit takes the composite insulator advantages that decide procurement and binds each one to published figures with named sources.

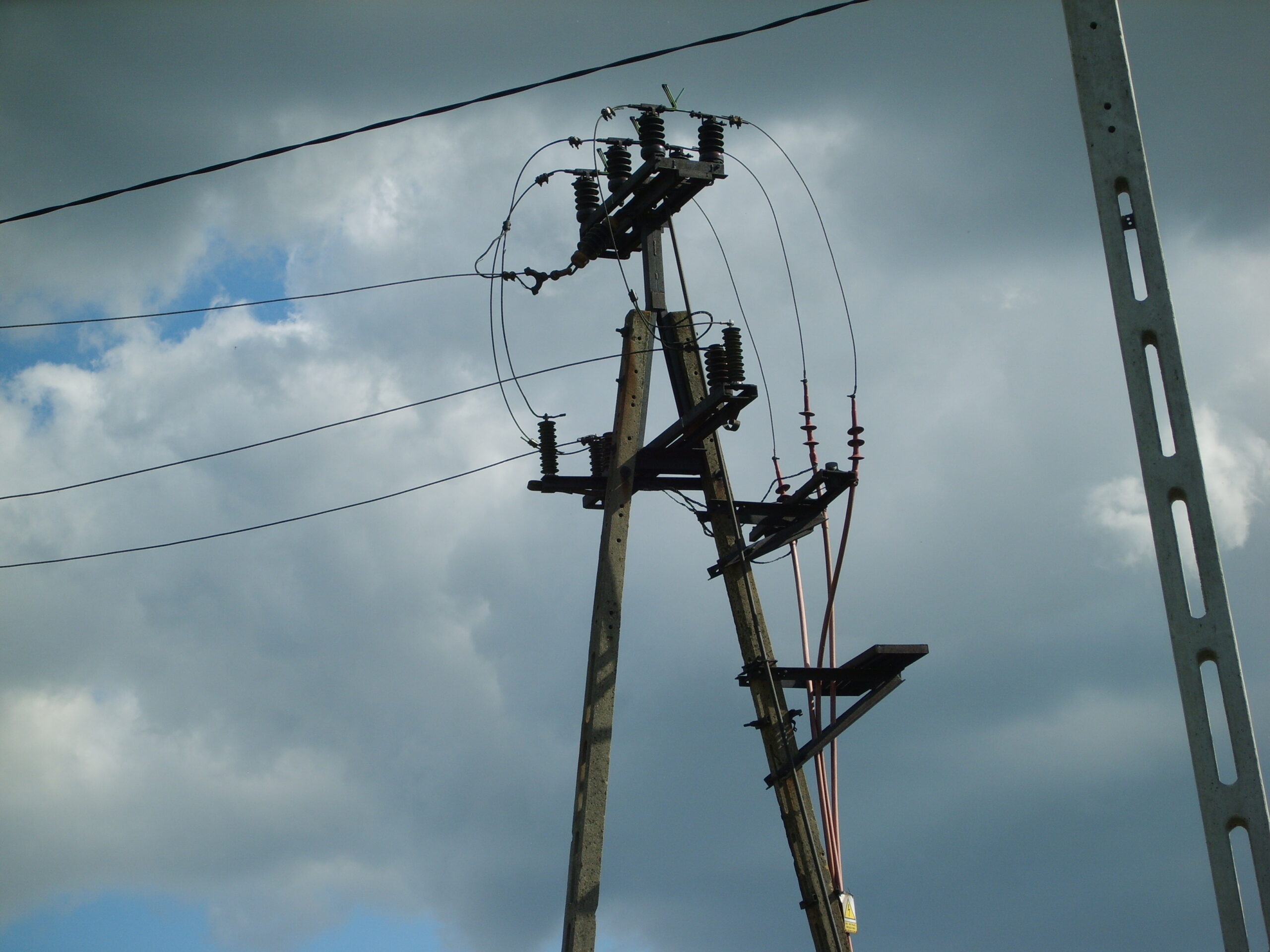

The practice matters to us because we ship these components worldwide. Since 2003, RaxPower has engineered pole line hardware and overhead line accessories from its base in Hebei, China. Our 170+ people keep a file of independently published measurements beside the factory’s own test records. What follows is that file, opened for inspection.
How to Read This Evidence Audit
Each composite insulator advantage below gets the same treatment: a claim, a published figure, and the source that published it.
Two sources carry most of the load. The first is an academic journal comparison of ceramic and non-ceramic insulators, written by M.T. Gencoglu and published in the e-Journal of New World Sciences Academy in 2007. The second is a 2026 technical guide from Vuulcan Insulators, a supplier serving transmission projects across MENA and Asia-Pacific. A 2022 review in the journal Polymers covers the underlying material science.
Treat every ratio the way you would treat a load rating: ask what configuration produced it. Voltage class, string versus single unit, and included hardware all move the number. Where the sources disagree, this audit reports the disagreement instead of smoothing it over.
Procurement gives this habit a financial edge. Two quotations can cite the same advantage and mean different strings, and a tender scored on unverifiable numbers inherits the error at purchase-order scale. The composite insulator advantages below are ordered the way a tender usually scores them, heaviest lever first.
Neither source is beyond question, which is the point of pairing them. A 2007 paper carries university review but predates modern housings, while a 2026 supplier guide is current but commercial. Read together, their overlap marks the claims that survive both vintages.
Advantage 1: String Mass in Published Kilograms

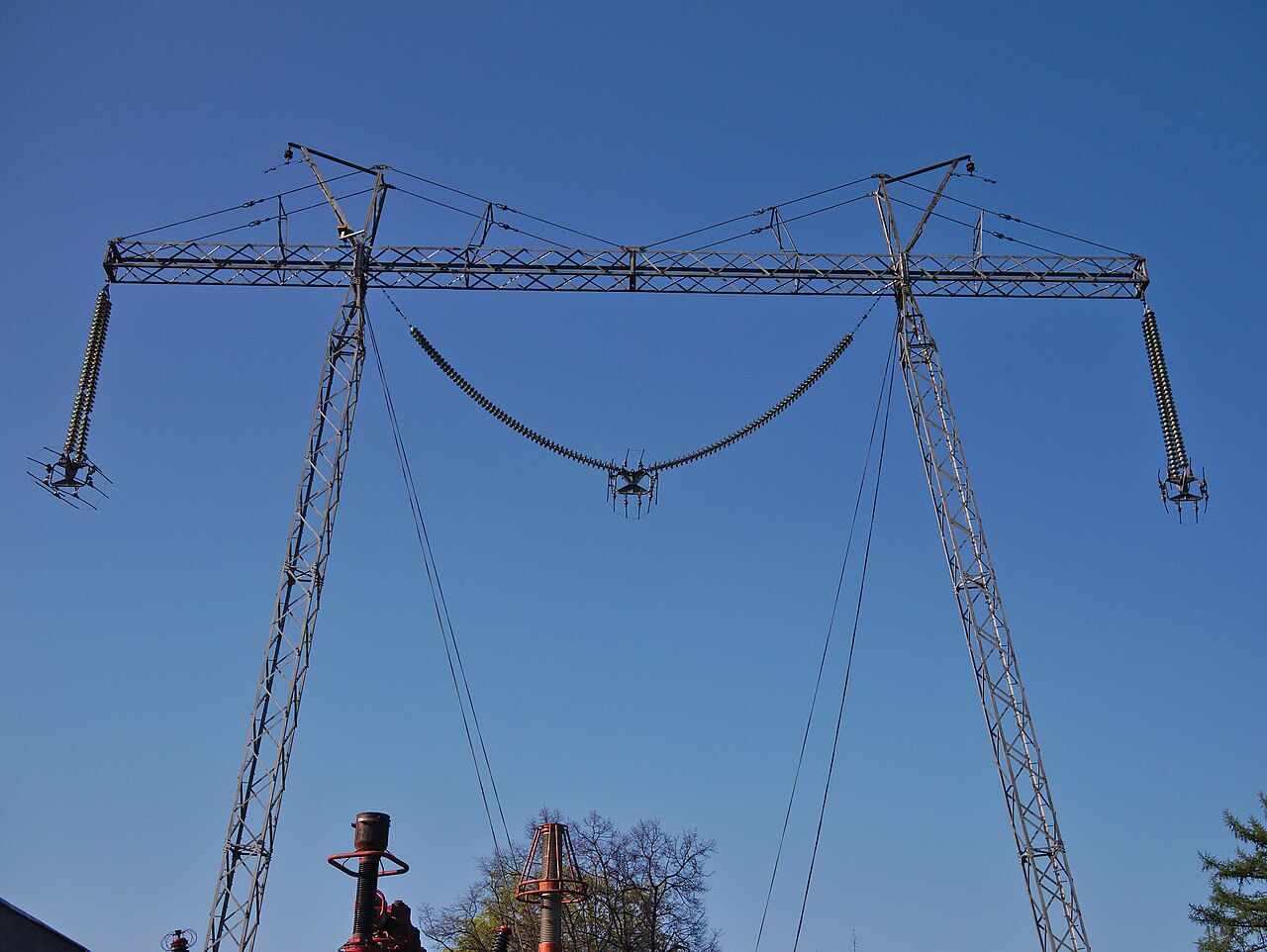

Mass is the advantage with the hardest numbers attached. Vuulcan’s 2026 guide tabulates a 220 kV suspension string at roughly 45 kg in porcelain against roughly 4 kg for the composite long-rod equivalent, an 80 to 90 percent reduction. The same guide recommends composite strings wherever tower weight becomes the binding constraint.
The 2007 university comparison lands in the same territory. It reports that a composite insulator normally weighs about 10 percent of the equivalent porcelain or glass type. The same paper puts silicone units under 25 percent of their ceramic counterparts, with savings that can reach 180 kilograms per insulator depending on the application.
| Published claim | Figure | Source |
|---|---|---|
| 220 kV string mass, porcelain vs composite | ~45 kg vs ~4 kg | Vuulcan technical guide, 2026 |
| Composite mass vs equivalent porcelain or glass | ~10% | Gencoglu comparison paper, 2007 |
| Silicone vs ceramic counterparts | <25%, up to 180 kg saved, application-dependent | Gencoglu comparison paper, 2007 |
A kilogram figure invites a check; a percentage invites a shrug. When the string arrives on site, the crew learns the truth within minutes of the first lift. Mass also compounds through the project: lighter strings cut the lifting equipment a site needs, and the 2007 paper credits non-ceramic insulators with fast restoration of service after a hurricane.
Design consequences follow the kilograms. The 2007 paper credits polymeric strings with tower designs and line compaction that porcelain cannot support, because attachment mass sets how far a structure must reach. Lighter hardware widens siting choices too: the Polymers review ties reduced insulator mass to economic tower design and to voltage upgrades that leave the towers untouched.
Advantage 2: Tensile Ratings Without the Mass
Lightness would be worthless if the load path shrank with it. It does not. Composite long rods are supplied as direct replacements for porcelain disc strings at the same mechanical ratings, and the standardized duties are public knowledge.
IEC 60305 fixes the common disc ratings. A U70BS disc carries a 70 kN specified mechanical load, U100BS carries 100 kN, and U160BS carries 160 kN. Composite suspension and tension insulators are specified to these same duty levels, and dead-end assemblies on bundled conductors can carry conductor tensions reaching 50 to 160 kN.
| IEC 60305 disc | Specified mechanical load | Composite equivalent |
|---|---|---|
| U70BS (standard) | 70 kN | Long rod, same rating |
| U100BS (heavy duty) | 100 kN | Long rod, same rating |
| U160BS (extra heavy) | 160 kN | Long rod, same rating |
The strength-to-weight ratio also buys design room. The 2007 comparison lists longer spans and new tower concepts among its direct consequences. The Polymers review adds that light weight lets a line upgrade its voltage without significant dimensional changes to the supporting towers, which is exactly the upgrade path aging corridors need. Tensile parity at constant ratings is the quiet half of the composite insulator advantages file.
Advantage 3: Pollution Withstand When Contamination Peaks
Pollution behavior is where silicone rubber pulls ahead of every ceramic option. The clearest published measurement sits in the 2007 comparison. At 230 kV, a composite design there carried 30 percent less leakage distance than standard porcelain, yet flashed over at voltage levels 30 percent higher under the worst contamination tested.
The mechanism is counterintuitive, so it deserves plain language. Field studies summarized in the paper found that non-ceramic insulators actually collect more pollution than porcelain ones. The silicone surface transfers hydrophobicity into that contamination layer, the film stays non-conductive, and surface resistance remains high enough to hold the flashover voltage up.
The same property explains why the material recovers rather than decays in place. The Polymers review records that silicone rubber earned its role as the housing material through self-recovery of surface hydrophobicity. The paper’s replacement records tell the same story from the field: when non-ceramic units replaced porcelain at similar leakage distance, flashover interruptions stopped.
Broader surveys point the same direction. The 2007 paper cites an EPRI survey indicating better contamination performance for non-ceramic insulators than for porcelain. It also credits silicone housing capability with allowing roughly 30 percent shorter leakage distances in design. Both claims carry the same instruction: verify against the contamination class your line actually crosses.
Advantage 4: No Shattered Discs, No Dropped Conductor

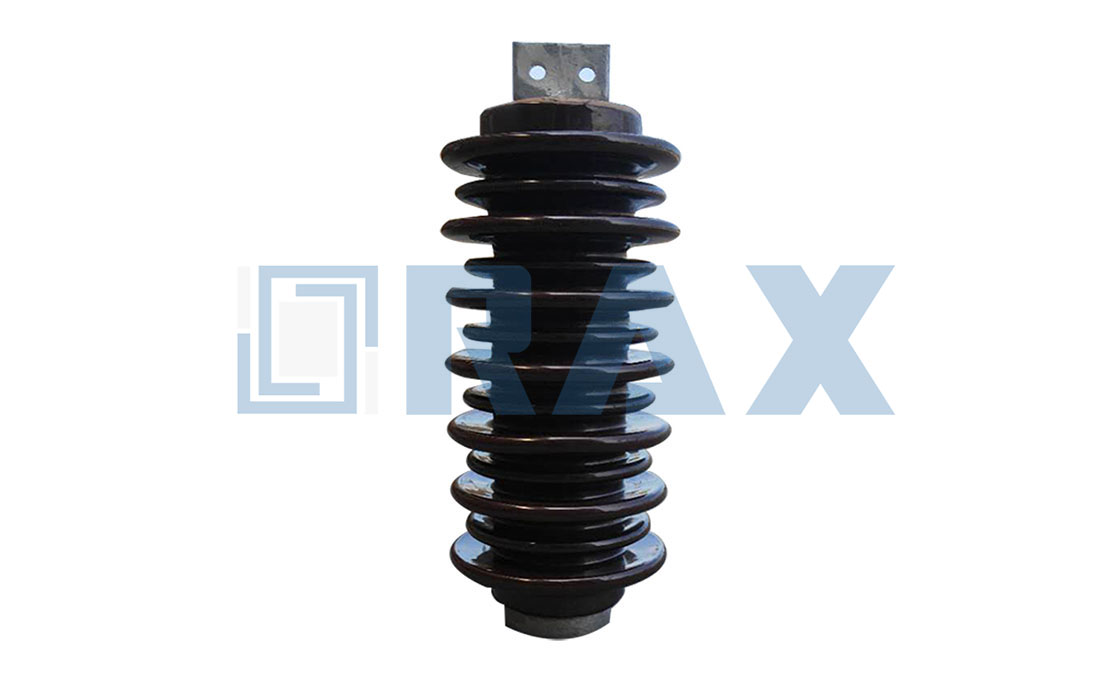

Porcelain and glass fail loudly. A gunshot that would crack a ceramic disc can drop the conductor. The 2007 paper documents the contrast directly: ceramic shatters, while silicone units keep working with almost no performance loss.
Vandal resistance is only half of it. Composite insulators do not shatter, break, or injure crews when mishandled, which changes how they travel and how they behave when a lift goes wrong. The paper adds a practical footnote: vandals lose interest quickly when shooting produces no dramatic result.
Vuulcan’s comparison table scores porcelain strings as vulnerable to disc shattering and composite strings as high, with no brittle components. Inspection simplifies for the same reason. The supplier table lists zero-sequence detection for porcelain strings and plain visual checks for composite ones, so no cracked internal discs hide inside the load path.
Handling safety rounds out the case. A dropped composite unit usually means a bruised ego rather than a shattered disc and a re-string, because nothing on the load path is brittle. Crews handle one-piece rods without the assembly steps that multi-disc strings demand.
Advantage 5: Faster Installation With Smaller Crews
Installation effort follows mass and assembly, and both favors here. Silicone insulators require no assembly on site, weigh under a quarter of their ceramic counterparts depending on the application, and, in the paper’s words, obviate the need for heavy cranes. Each of those removes labor hours and rental equipment from a build schedule.
Suppliers reinforce the point at string level. Because composite long rods use the same ball-and-socket interfaces as the disc strings they replace, utilities can run a parallel installation pilot before committing a full line cutover. Packaging shrinks with the product too, so freight, staging, and site waste all drop together.
Packaging compounds the saving again at the site. The 2007 paper notes that lighter units mean less packaging, fewer nails protruding from cases, and less cleanup between string settings. None of that appears on a datasheet, and all of it appears in the schedule.
Faster installation matters most when conditions turn hostile. Picture the storm-repair crew working from a helicopter bucket as daylight runs out; the string it can lift by hand is the string it can replace that day. That is where decades of lightness compound into outage hours saved.
Where Published Advantage Numbers Stop Matching
The composite insulator advantages survive this audit; the tidy numbers do not. Honest auditing means reporting the disagreements. The 2007 comparison says composites weigh about 10 percent of equivalent ceramic or glass mass. The 2026 guide says 80 to 90 percent lighter, which describes the same advantage from the opposite end. The same paper adds an under-25-percent figure with savings up to 180 kg, without naming the application behind it. Our inference is that larger assemblies drive such spreads; we flag that as interpretation, not as the paper’s claim.
The spread has causes a buyer can check. Voltage class changes the denominator, a single long rod is not a strung assembly with yokes and hardware, and every supplier counts differently. Service life spreads the same way. The Vuulcan guide lists 25 to 40 years for composites against 40 to 60 for porcelain and glass — a range, not a verdict.
Auditing two published numbers against each other takes minutes. Write down the voltage class each source used, note whether the figure describes one long rod or a full strung assembly, and check whether end hardware rode inside the mass. If any of the three is missing, treat the ratio as marketing until a configuration sheet proves otherwise. The fastest audits fail fast: a number with no configuration behind it has answered the question already.
In our view, the variance is not a weakness of the advantage case; it is the reason to demand the configuration behind every quoted ratio. Suppliers who can name the string behind their number are usually the suppliers whose remaining claims survive an audit. Suppliers who cannot, will not.
The Advantage Case After the Audit
Checked against independent publications, the composite insulator advantages hold in five places: string mass, tensile duty at equal ratings, polluted-condition flashover, vandalism behavior, and installation effort. None of the five depends on a vendor grading its own homework, and each arrives with a citation a procurement team can re-check before the purchase order.
RaxPower builds composite insulators from silicone rubber sheds, a fiberglass core, and aluminium alloy end fittings, and we encourage buyers to audit every supplier the way this article does. Published evidence is what made composite insulators mainstream. It is also, line for line, the right way to buy them.
The method travels beyond this audit. Ask for the published figure, the source, and the configuration behind any advantage a quotation claims; those three items separate an evidence file from a brochure in under an hour. Lines built on that habit inherit advantages that were measured, not merely advertised.
Questions fréquemment posées
De combien une chaîne composite est-elle plus légère qu'une chaîne en porcelaine ?
Les chiffres publiés diffèrent selon la classe de tension. Un guide des fournisseurs de 2026 indique environ 45 kg pour une chaîne isolante en porcelaine 220 kV contre environ 4 kg pour une équivalente composite. Une comparaison universitaire de 2007 évalue les composites à environ 10 % de la masse équivalente.
Les isolateurs composites accumulent-ils plus de pollution que les isolateurs en porcelaine ?
Published pollution studies found that they often do. The silicone housing transfers hydrophobicity into that contamination layer, so the film stays non-conductive and polluted-condition flashover voltage still tests higher than porcelain.
How much leakage distance can silicone housings save in design?
A 230 kV comparison reported a composite design with 30 percent less leakage distance than standard porcelain, yet flashover voltage 30 percent higher under the worst contamination level tested.
Why does gunfire rarely drop a conductor on composite lines?
There is no brittle ceramic shell on the load path. Published comparisons report that silicone units struck by gunfire keep working with almost no performance loss, and vandals lose interest when nothing dramatic happens.
Are advantage figures comparable across manufacturers?
Not directly. Ratios change with voltage class, string versus single unit, and whether yokes and hardware count in the mass. Ask which configuration each published number describes before you quote it downstream.
