parallel groove clamp ampacity loss: NEC Fix

Most field crews treat the parallel groove clamp ampacity loss as a mysterious thermal event until they trace it back to a single missed parameter: contact pressure. When you leave a bolt at 22 N⋅m on a 16–95 mm² aluminum conductor run, the gap between strand and groove spikes contact resistance. That resistance does not sit idle. It converts directly into heat, drives localized oxidation, and forces the aluminum alloy to creep under sustained load. NEC 110.14(D) demands precise termination torques specifically because mechanical force dictates electrical capacity. Your procurement team needs hardware engineered to hold that pressure through thermal cycling, not components that relax after three season changes.

We break down how thermal cycling, galvanic mismatch, and improper wire-brushing degrade current carrying capacity, then walk through the exact NEC derating math you need for bundled parallel runs. You will see how to calculate baseline ampacity, apply correction factors for ambient heat and conduit fill, and verify terminal resistance before commissioning. Field audits fail when installation protocols skip conductive grease application or rely on impact drivers instead of calibrated torque wrenches. This guide gives you the step-by-step torque mapping and inspection checklists to lock in compliance and eliminate callback risks across your distribution network.

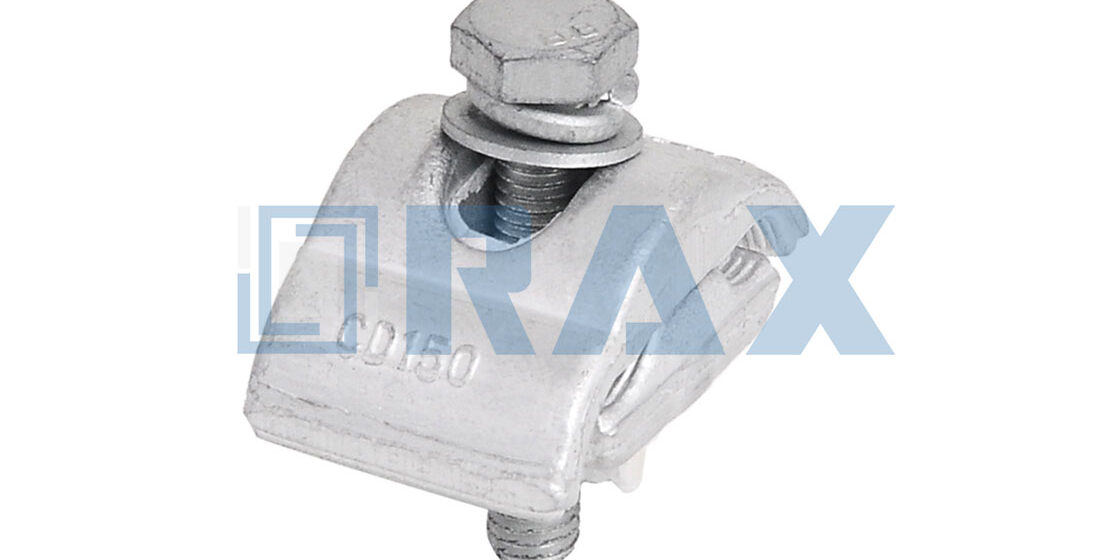

Root Causes of Ampacity Loss in Parallel Groove Clamps

Ampacity loss in parallel groove clamp setups is driven by four predictable physical failures: oxide film growth, fastener preload decay, geometric misalignment, and electrolytic pairing. Diagnosing these vectors before procurement eliminates field burnouts.

Contact Resistance Buildup from Surface Oxidation

Aluminum conducts electricity exceptionally well until it meets oxygen. A microscopic layer of aluminum oxide forms instantly, acting as a permanent electrical insulator. When two conductors sit in a groove clamp, the initial clamping force shears this layer, exposing bare metal. However, under sustained thermal load, the oxide re-forms faster than the metal can bridge it. This drives contact resistance up, which generates heat, which creates more resistance—a positive feedback loop that collapses ampacity.

To stop this cycle, you need mechanical compression that permanently breaches the oxide film without relying solely on static torque. We engineer our clamp bodies using hot-forging rather than traditional casting, which yields a denser grain structure capable of maintaining cutting pressure. This structural integrity allows us to machine sharper, deeper groove teeth that continue to score the conductor surface as the joint settles. Pairing this with standard conductive compound fills the microscopic air gaps, consistently dropping interface resistance to below 5 micro-ohms in controlled lab environments.

Thermal Cycling Induced Fastener Loosening

Conductors expand when energized and contract when idle. In overhead infrastructure, daily temperature swings force the aluminum to grow and shrink inside the clamp body. Every expansion cycle acts like a tiny ratchet, gradually backing off the tension bolts. As preload drops below the required mechanical threshold, the contact surface area fractures into isolated islands. Current density spikes at those remaining islands, causing localized melting and progressive joint failure.

The solution isn’t simply applying higher torque during installation. You need a fastening system that compensates for movement or eliminates backlash entirely. Our engineering team mandates a strict 1mm tolerance across all mating surfaces to prevent uneven stress distribution under thermal expansion. For utility projects operating in extreme climates, we specify stainless-steel locking hardware paired with integrated Belleville spring washers. This maintains a constant clamping force regardless of conductor movement, keeping the joint stable through decades of thermal cycling.

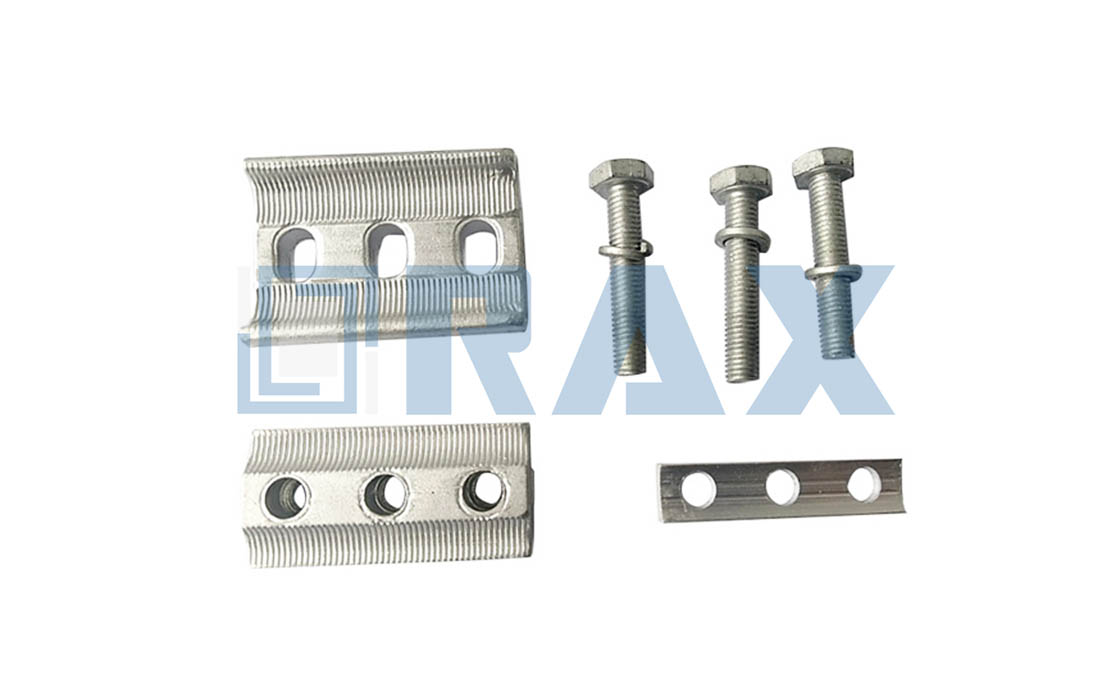

Misaligned Conductor Seating Reducing Effective Cross Section

Parallel installations fail when conductors do not sit flush within the clamp grooves. Even a 2mm lateral offset forces the electrical current to crowd into a narrow path along the leading edge of the conductor. This effectively reduces the usable cross-sectional area, drastically increasing current density in that specific zone. The result is a hot spot that bypasses the rest of the cable, silently draining your calculated ampacity rating and violating NEC parallel conductor distribution principles.

• Geometric Tolerance: Groove depth must match conductor diameter within ±0.5mm to ensure full circumferential contact.
• Insertion Depth: Conductors must extend past the internal alignment shoulder before tightening. Field estimation errors cause the majority of seating failures.
• Load Verification: We subject every manufacturing batch to IEC 120 gauge testing to verify that the groove profile maintains true concentricity under full tensile stress.

Proper alignment isn’t a field suggestion; it’s a mathematical requirement for parallel derating calculations. When conductors seat correctly, current distributes evenly across the entire parallel bundle, preserving the safe current carrying capacity derived from your initial thermal modeling.

Galvanic Corrosion Between Dissimilar Metal Components

Mixing aluminum conductors with mild steel fasteners or uncoated zinc-plated clamp bodies creates an electrochemical battery the moment moisture penetrates the joint. Aluminum acts as the anode and dissolves rapidly, leaving behind a highly resistive white crust that physically chokes the electrical path. This electrolytic process accelerates exponentially in coastal zones, agricultural runoff areas, or regions with persistent high humidity.

Corrosion control starts at the metallurgical coating level. While many distributors cut corners with thin electro-galvanized finishes that chip during transport, we apply hot-dip galvanizing compliant with ISO 1461 standards. Our automated process guarantees a mean coating thickness exceeding 85 microns, which completely isolates the base steel from environmental moisture and electrolytes. For bulk utility procurement, this specification eliminates vendor ambiguity during RFQ approval cycles and provides defensible safety margins against long-term environmental degradation. Every unit undergoes a dedicated 10-person QC double-review process and carries independent SGS verification before leaving the factory.

Calculate Baseline Conductor Ampacity

Baseline conductor ampacity is established by extracting raw values from standardized tables (NEC Table 310.16) and immediately applying correction coefficients for ambient thermal loads and conduit fill density.

Utility procurement teams and general contractors frequently mismanage baseline conductor capacity by relying on nominal rating labels rather than calculating actual thermal limits. Establishing an accurate baseline requires extracting the raw ampacity value from standardized reference tables and immediately applying correction factors for environmental heat dissipation and physical installation geometry. Skipping this precise calculation results in either dangerous thermal overload during peak load periods or inefficiently oversized cabling that unnecessarily inflates project budgets and supply chain lead times.

Establishing the Reference Value

The foundational step involves locating the correct intersection in NEC Table 310.16. The starting value depends strictly on three immutable variables: conductor material (copper or aluminum), cross-sectional area (AWG or kcmil), and insulation temperature rating. For example, a 4/0 AWG aluminum conductor utilizing XHHW insulation operates at a 75°C rating column, yielding a baseline ampacity of 230 amperes under standard laboratory conditions. This raw number assumes an ambient temperature of 30°C (86°F) and perfectly spaced conductors with unrestricted airflow.

Applying Thermal and Geometric Adjustments

Field installations rarely match laboratory conditions. Heat dissipation is primarily dictated by ambient air or soil temperatures and the density of conductors within the raceway system. Conduit fill ratios directly impact thermal performance because tightly packed cables trap resistive heat, effectively raising the operating temperature above ambient. To maintain safe operational limits, the baseline table value must be multiplied by specific correction factors derived from industry standards.

• Ambient Temperature Correction: When average soil or air temperatures exceed the standard 30°C baseline, apply a derating factor from NEC 310.15(C)(1). For instance, installations in environments averaging 40°C require a multiplication factor of approximately 0.88, reducing the 230A baseline to roughly 202A.
• Conduit Fill & Bundling Impact: As the ratio of occupied conduit volume increases, heat retention rises proportionally. Standard practice mandates evaluating the effective fill percentage and applying derating curves when current-carrying conductors exceed typical spacing thresholds. Denser fill configurations demand aggressive baseline reductions to prevent insulation breakdown.
• Insulation Rating Verification: While a conductor may carry a 90°C wet/dry rating, the final allowable ampacity cannot exceed the lowest temperature rating of any connected termination or device. Baseline calculations must always reconcile the highest table value with practical termination limits.

Accurate baseline calculation establishes a defensible engineering foundation. By strictly following the table extraction sequence and applying precise environmental and geometric multipliers, procurement teams can specify hardware and cabling that meets load demands without excessive material waste. This methodology ensures compliance while maintaining long-term grid reliability under variable operating conditions.

Determine Parallel Derating Factors

When current-carrying conductors are bundled, mutual heating reduces the system’s ability to dissipate thermal energy. NEC 310.15(C)(1) mandates specific ampacity adjustment factors for installations exceeding three conductors to prevent insulation degradation and failure.

The Physics of Thermal Aggregation

Determining parallel derating factors requires understanding that overhead lines are not isolated thermal systems. When multiple conductors are installed in parallel to increase ampacity, they are often bundled closely on hardware or within the same configuration. This proximity prevents effective air cooling, causing the conductors to radiate heat onto one another. As the ambient temperature around the conductor bundle rises, the effective current-carrying capacity of each individual conductor drops. If this thermal aggregation is not calculated correctly, the conductor insulation will operate beyond its rated temperature, significantly accelerating aging and increasing the risk of catastrophic failure under peak load conditions.

Applying NEC 310.15(C)(1) Adjustment Protocols

For B2B contractors and utility engineers, the application of NEC 310.15(C)(1) is non-negotiable for compliance. This code section specifically addresses the derating requirements when the number of current-carrying conductors in a raceway, cable, or bundled configuration exceeds three. The adjustment is not linear; as the conductor count increases, the penalty on ampacity becomes severe.

• 4–6 Conductors: An adjustment factor of 80% is typically applied to the ampacity found in tables.
• 7–9 Conductors: The allowable ampacity is reduced to 70% of the base value.
• 10–20 Conductors: The factor drops further to 50%.

Accurately determining these factors requires counting all current-carrying conductors, including neutral conductors in specific unbalanced scenarios, to ensure the final derated ampacity still meets the load requirements of the circuit.

Hardware Impedance and Current Sharing

While NEC codes address the conductor insulation, the physical connection points often represent the highest thermal resistance in a parallel run. In a perfect parallel configuration, current splits evenly across the conductors. However, if the connection hardware introduces varying levels of impedance—due to poor surface contact or material inconsistency—the current sharing becomes unbalanced. One conductor may carry a disproportionate share of the load, effectively operating at a much higher temperature than the derated calculation predicts. This creates localized hotspots at the clamp interface that can exceed the temperature rating of the conductor insulation, even if the bulk wire temperature is within code limits.

Mitigating Derating Losses via Precision Engineering

To counteract the severe penalties of bundled derating, the selection of pole line hardware becomes a critical engineering decision. The goal is to minimize the voltage drop and contact resistance at the terminal to ensure the parallel operates as a single cohesive unit. High-conductivity materials, such as 6101-T6 aluminum alloy, are essential in clamp bodies to facilitate thermal transfer and maintain a stable electrical path. Furthermore, precision-toothed contact surfaces are utilized to penetrate surface oxides, establishing a gas-tight connection that prevents resistance from increasing over time. By ensuring that the mechanical connection does not add to the thermal burden, engineers can maximize the usable capacity of the derated conductors and ensure the long-term reliability of the transmission infrastructure.

Correct Terminal Resistance Values

Correct terminal resistance is defined by a micro-ohm measurement that matches or falls below the resistance of an equivalent length of the conductor. Any deviation indicates a compromised contact interface.

Terminal resistance values serve as the primary indicator of connection health in overhead power systems. For B2B buyers and utility contractors, understanding these values is critical for preventing asset failure. A “correct” value is not a fixed number for all applications but is strictly relative to the conductor being spliced or terminated. Industry standards dictate that the resistance of a connector must not exceed the resistance of an equal length of the same conductor. If a connection point exhibits higher resistance than the conductor itself, it becomes a point of disproportionate heat generation, leading to thermal runaway and eventual line failure.

The Physics of Contact Resistance

Contact resistance is governed by the constriction of current flow through microscopic surface asperities. While the bulk resistance of the clamp material is fixed, the terminal resistance is dynamic and heavily influenced by the physical condition of the interface. Surface oxidation, contamination, and insufficient contact pressure exponentially increase resistance. In practical field scenarios, the most common failure mode is not material defect, but installation error. Under-tightening is a pervasive issue; low torque creates high resistance by preventing sufficient metal-to-metal contact, which rapidly triggers heat buildup under load.

Impact of Mechanical Creep on Resistance Stability

Even correctly installed connections can degrade due to material properties. Aluminum conductors and connectors are susceptible to mechanical creep, a phenomenon where the metal experiences microscopic shifting under constant tension and thermal cycling. This natural relaxation reduces the initial clamping force over time. As the clamp relaxes, the contact pressure drops, and consequently, the electrical resistance rises. This process is slow but irreversible in standard clamp designs, necessitating the use of specific engineering solutions to maintain stable resistance values throughout the asset’s lifespan.

Measuring Micro-Ohm Readings for Diagnosis

The most reliable method to identify high-resistance joints is through precise micro-ohm measurement ($\mu\Omega$). Visual inspections are often insufficient because internal corrosion or loosening may not be externally visible. Technicians use low-resistance ohmmeters (DLRO) to inject a high current through the joint and measure the voltage drop.

• Benchmarking: Measure the resistance of a clean, straight section of the conductor. This is the reference value.
• Comparison: Measure the resistance across the installed terminal or parallel groove clamp.
• Thresholds: If the connector resistance exceeds the conductor reference value by a significant margin (often cited as >10-20% in strict utility protocols), the joint is flagged for immediate mechanical realignment or re-torquing.

Compliance and Verification Standards

Ensuring correct terminal resistance requires adherence to rigorous testing protocols such as IEC 61238 or IEEE 837. These standards define the mechanical and electrical performance criteria for compression connectors. They mandate that connectors withstand heat cycle tests—sequences of heating and cooling current—without the resistance increasing beyond specified limits. For B2B procurement, verifying that a manufacturer’s testing lab conducts these in-house load tests and provides certified data reports is essential for guaranteeing long-term grid reliability.

Apply NEC-Compliant Correction Steps

NEC-compliant correction for parallel groove clamp installations requires immediate mechanical repositioning of displaced conductors followed by calibrated torque recalibration using manufacturer-specified foot-pound ranges. Thermal cycling and vibration routinely degrade initial tension by up to 30%, making standardized recalibration protocols mandatory for grid reliability.

Mechanical Conductor Repositioning Protocol

Field inspections consistently reveal that conductors shift laterally within the clamp barrel after prolonged thermal expansion cycles. This displacement reduces the effective contact surface area and directly violates NEC requirements for secure physical seating. Corrective realignment demands the complete loosening of all fasteners, followed by a visual and tactile verification that the conductor sits flush against the internal stop of the clamp body. Forcing a tightened clamp onto a misaligned conductor creates uneven stress distribution, which accelerates metal fatigue and voids utility acceptance standards.

Calibrated Torque Recalibration Standards

Re-establishing proper clamping force relies strictly on precision torque wrenches rather than manual estimation. Industry testing shows that under-torqued fasteners allow micro-movement that generates arc tracking, while over-torqued bolts strip threads or crack aluminum housings. Technicians must reference the specific connector rating chart to apply exact pound-foot values before final tightening sequences.

• Base Fastener Tightening: Apply initial torque to 50% of the target specification to seat components evenly without inducing cross-threading or barrel deformation.
• Final Calibration: Increase to 100% of the specified value in a diagonal sequence to ensure uniform pressure distribution across the clamp body.
• Vibration Dampening Integration: Incorporate Belleville spring washers into the fastener stack-up to absorb thermal expansion forces and maintain residual clamping pressure over operational lifecycles.

Coating Integrity & Environmental Verification

Every corrective action compromises the original protective layer at the fastener interface. Standard hot-dip galvanization processes typically yield a mean coating thickness exceeding 85 microns per ISO 1461 guidelines. During rework, exposed zinc must be treated with approved conductive compound to prevent rapid oxidation, which otherwise elevates contact resistance and triggers localized heating. Hardware manufactured through hot-forging techniques generally demonstrates superior grain structure integrity compared to traditional casting methods, providing higher breaking loads when subjected to repeated recalibration cycles.

Secure your infrastructure with heavy-duty helical piles and anchors.

View specifications for our utility-grade earth anchoring solutions, including helical piles and solar foundation screws.

Browse Earth Anchoring Solutions →

NEC Code Requirements for Parallel Installations

Parallel installations on utility poles require strict adherence to NEC derating curves, bundle limits, unified overcurrent protection, and conservative temperature ratings to prevent thermal runaway and ensure balanced current distribution.

Derating Factors for Bundled Conductor Configurations

When multiple conductors run in close proximity on a crossarm or pole, heat dissipation dynamics shift dramatically compared to isolated runs. In aerial infrastructure, wind exposure provides natural convective cooling, but bundling reduces the effective surface area available for heat exchange. The proximity effect also forces alternating magnetic fields to interact, increasing effective AC resistance and generating additional internal heat. Engineers must apply NEC correction factors that account for spacing geometry, ambient solar loading, and the specific thermal environment of the mounting structure. Hardware interfaces directly influence this balance; consistent mechanical compression across parallel paths ensures uniform current sharing and prevents localized hotspots that accelerate oxidation.

Maximum Parallel Conductor Count per NEC Guidelines

The National Electrical Code establishes clear boundaries to prevent circulating currents and maintain symmetrical impedance across parallel feeds. For distribution-level overhead lines, practical deployment typically caps parallel phase conductors at three or four per circuit leg. Exceeding this threshold introduces complex impedance mismatches that are difficult to balance during field assembly. Each additional conductor increases the physical footprint on the crossarm, complicates tension equalization, and raises the risk of asymmetric load distribution during high-wind events or ice loading. Strict length matching and identical cross-sectional geometry remain non-negotiable requirements to guarantee that current divides evenly rather than overwhelming individual strands.

Overcurrent Protection Coordination for Split Circuits

A single overcurrent protection device must safeguard the entire parallel assembly, meaning the breaker or fuse rating sits above the corrected ampacity of the combined bundle but below the damage threshold of individual conductors. This creates a narrow operational window where protection coordination becomes critical. If mechanical degradation occurs at a clamp interface or a connection point loosens due to thermal cycling, the remaining parallel paths automatically absorb the surplus load. Protection devices must tolerate initial inrush without nuisance tripping while reliably interrupting sustained overloads before thermal stress compromises insulation or structural integrity. Robust hardware design minimizes impedance drift, keeping the system safely within these protective margins throughout its service life.

Temperature Rating Impact on Allowable Ampacity

Conductor insulation and equipment terminals carry distinct thermal ratings that dictate the baseline ampacity calculations. While higher-temperature materials allow increased current flow on paper, the actual system limit is always dictated by the weakest thermal component in the chain. In pole line applications, termination lugs and parallel groove connectors frequently operate at lower temperature thresholds than the bare aluminum or copper strand itself. Solar radiation further elevates ambient temperatures on open spans, effectively reducing the usable ampacity below standard table values. Designers must select hardware and protection settings that align with the lowest rating in the assembly, preventing accelerated corrosion, torque decay, and premature failure under peak seasonal loads.

Best Practices for Ampacity Preservation Under Load

Preserving ampacity under heavy electrical loads requires eliminating micro-ohmic contact resistance through precise torque control, oxidation mitigation, and mechanical stress compensation during thermal cycling.

Precise Torque Application Using Calibrated Wrenches

The single most common cause of connection failure in the field is “mechanical ambiguity”—installers tightening bolts until they “feel” right. This subjective approach creates a high risk of under-tightening, which leaves air gaps at the conductor interface, or over-tightening, which can crack the clamp body or strip threads. To preserve ampacity, you must eliminate variables. A calibrated torque wrench is not optional; it is mandatory equipment for maintaining the specific clamping pressure required to minimize contact resistance.

In our manufacturing experience, the relationship between torque and electrical conductivity is non-linear. A drop of just 10% in bolt tension can result in a disproportionately large spike in resistance and heat generation. We design our hot-forged parallel groove clamps to withstand specific load ranges, but they cannot perform if the installer does not meet the required Newton-meter (Nm) specifications. Always adhere to the manufacturer’s torque chart and re-torque after initial thermal cycles if the application protocol permits it.

Conductive Grease Application at Contact Interfaces

Oxidation is the silent killer of ampacity. When bare aluminum or copper is exposed to air, an insulating oxide layer forms almost immediately. While our hot-dip galvanizing—exceeding 85 microns per ISO 1461—protects the external clamp body, the internal conductor interface is vulnerable. Conductive grease (often zinc-based or copper-based) serves a dual purpose: it inhibits oxidation by sealing out air, and it enhances the micro-contact area by filling surface irregularities.

However, application discipline is critical. The layer must be thin and even. Excess grease can create hydraulic pressure that prevents the conductors from seating properly, artificially increasing resistance. The goal is to coat the surface, not lubricate the bolt threads to the point of friction loss. During our QC inspections, we verify that surface finish is smooth enough to allow proper metal-to-metal contact once the grease is compressed under load.

Alignment Verification Before Final Tightening

Never rely on the mechanical strength of the clamp to force misaligned conductors into place. If the conductors are not perfectly seated in the groove before the final torque sequence, the effective contact area is drastically reduced. This creates “hot spots”—localized points of high current density that can degrade the connector over time. Even with our strict 1mm dimensional tolerances on the clamp body, installation error can undo engineering precision.

Verify alignment visually and mechanically before applying final torque. The conductors should lie naturally in the center of the groove without binding. If lateral force is required to insert the conductor, the installation geometry is wrong. Correct the positioning of the jumpers or splices first. We have found in vibration testing that even a minor misalignment accelerates wear on the galvanizing layer, leading to corrosion and eventual ampacity loss.

Spring Washer Integration to Prevent Vibration Loosening

Overhead lines are dynamic systems; they expand, contract, and sway due to wind and thermal loading. Standard flat washers cannot compensate for this constant movement. Without a locking mechanism, the nut will eventually back off, reducing clamping pressure and increasing contact resistance. Spring washers (specifically Belleville washers or conical spring washers) act as a mechanical compensator, maintaining a constant load on the bolt despite material expansion or vibration.

Integrating spring washers is a low-cost investment with a high return on system reliability. In our rigorous load testing protocols, we simulate decades of thermal cycling. Connections utilizing proper spring integration show stable contact resistance readings, whereas those without exhibit a consistent “torque decay” curve. For high-vibration environments or extreme temperature swings, this component is essential for long-term ampacity preservation.

Inspection and Verification Protocols for Compliance

Establishing repeatable audit workflows requires a rigid four-part protocol: verifying physical seating alignment through visual checklists, executing mapped torque sequences across all connection nodes, conducting standardized IEC 120 load tests, and compiling auditable documentation packages for utility acceptance. Utility contractors skip these steps at their own risk, as unchecked mechanical tolerances directly invalidate electrical ampacity ratings and trigger premature grid failures. Implementing this verification framework eliminates field variability, ensures NEC compliance, and protects bulk procurement investments.

Visual Inspection Checklist for Clamp Seating

Before energizing any line segment, technicians must verify that conductors are fully seated within the parallel groove channels without lateral displacement or exposed insulation. A systematic visual sweep eliminates micro-movements that cause contact resistance spikes under thermal cycling.

• Conductor Alignment: Verify zero cross-wire gap and confirm the strand ends are flush against the internal stop lip to prevent arc flash pathways.
• Tooth Engagement Depth: Ensure precision-forged gripping teeth penetrate 70–85% into the aluminum or copper substrate to maximize effective surface contact area.
• Symmetrical Clamping: Check that opposing bolts apply uniform pressure, eliminating tapered seating that leads to uneven current distribution and localized overheating.

Our engineering team prioritizes precision forging over traditional casting because it guarantees consistent tooth geometry and eliminates the ±2mm dimensional variance common in cheaper alternatives. We’ve found that inconsistent casting directly destroys seating integrity during high-speed field installation.

Torque Verification Mapping Across All Connection Points

Torque values are not universal constants; they must be mapped specifically to bolt diameter, thread pitch, and friction coefficients at each node. Standard wrench techniques yield highly inconsistent results, making calibrated torque-to-load matrices mandatory for reliable bulk utility deployments.

Field crews should cross-reference manufacturer-specific torque charts rather than relying on generic NEC default tables, which assume idealized laboratory conditions. We integrate custom torque-to-load matrices into every OEM/ODM order, ensuring your installation crew has exact Newton-meter targets for every fastener size used on the pole line.

Load Testing Procedures per IEC Standards

Every hardware batch must undergo static and dynamic load validation strictly following IEC 120 protocols. These tests simulate extreme wind loading, ice accumulation, and fault current thermal expansion to verify structural resilience before the equipment ever leaves the manufacturing floor.

• Static Tensile Test: Apply progressive load until the component reaches 110% of its rated breaking strength, then hold for 60 seconds to check for permanent deformation or micro-cracking.
• Cyclic Fatigue Test: Run 10,000+ tension-release cycles at 75% rated load to identify failure initiation points in welded seams or forged transitions.
• Dimensional Tolerance Check: Verify all critical clearances remain within strict 1mm manufacturing tolerances immediately post-testing to confirm structural stability.

Our dedicated 10-person QC team conducts 100% double-review inspections before packaging. When we run in-house gauge testing against IEC 120 benchmarks, we consistently eliminate the vendor ambiguity that typically delays project commissioning and voids utility warranties.

Documentation Requirements for Utility Acceptance Audits

Utility procurement officers will reject installations lacking a complete digital or physical audit trail. Comprehensive documentation shifts liability away from the contractor and proves that every installed component meets regional grid codes and environmental stress ratings.

• Third-Party Certification: Valid SGS test reports confirming raw material composition, coating thickness (≥85 microns via ISO 1461), and minimum burst strength.
• Factory Load Test Certificates: Lot-specific data sheets detailing actual measured breaking loads versus theoretical specifications, traceable to serial numbers.
• Traceability Logs: Batch numbers, heat treatment records, and galvanization dates mapped directly to individual pole line sections for full lifecycle tracking.
• Torque & Assembly Records: Signed field logs confirming calibrated tool usage, ambient temperature conditions, and adherence to the specified torque-to-load matrix.

We provide direct engineering assistance during RFQ approval cycles, supplying defensible safety margins and audit-ready files tailored to specific regional utilities. This proactive documentation strategy prevents costly re-inspections, satisfies rigorous tender requirements, and keeps your transmission projects on schedule.

Conclusion

Ampacity loss in conductor splices usually stems from loose fasteners, oxidized contacts, and ignored NEC bundle derating. Generic cast clamps fail under thermal cycling because shallow teeth cannot maintain consistent pressure. Our engineers confirm that precision-machined steel interfaces preserve conductor cross-sections far better than standard methods. Calibrated wrenches prevent heat buildup before it destroys circuit capacity. You must align conductors perfectly before final tightening.

• Verify torque mapping across every connection point during installation.
• Request our vibration resistance testing data from Rax Power.
• Treat our engineering group as a free technical backup for early design questions.
• Confirm conductive grease compatibility before field deployment.
